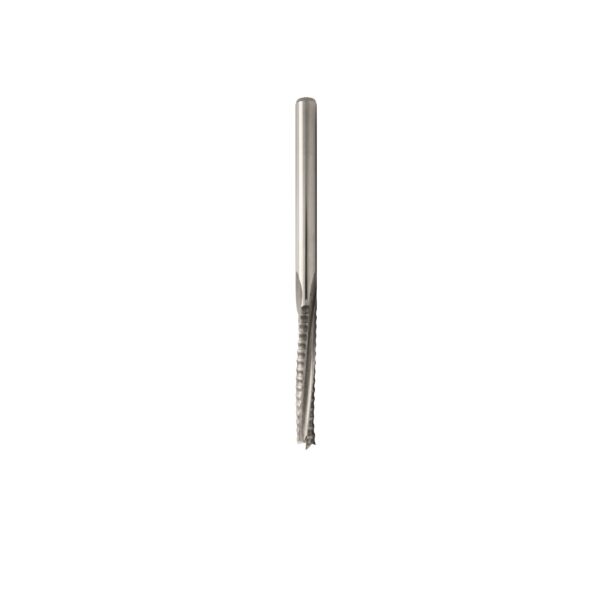

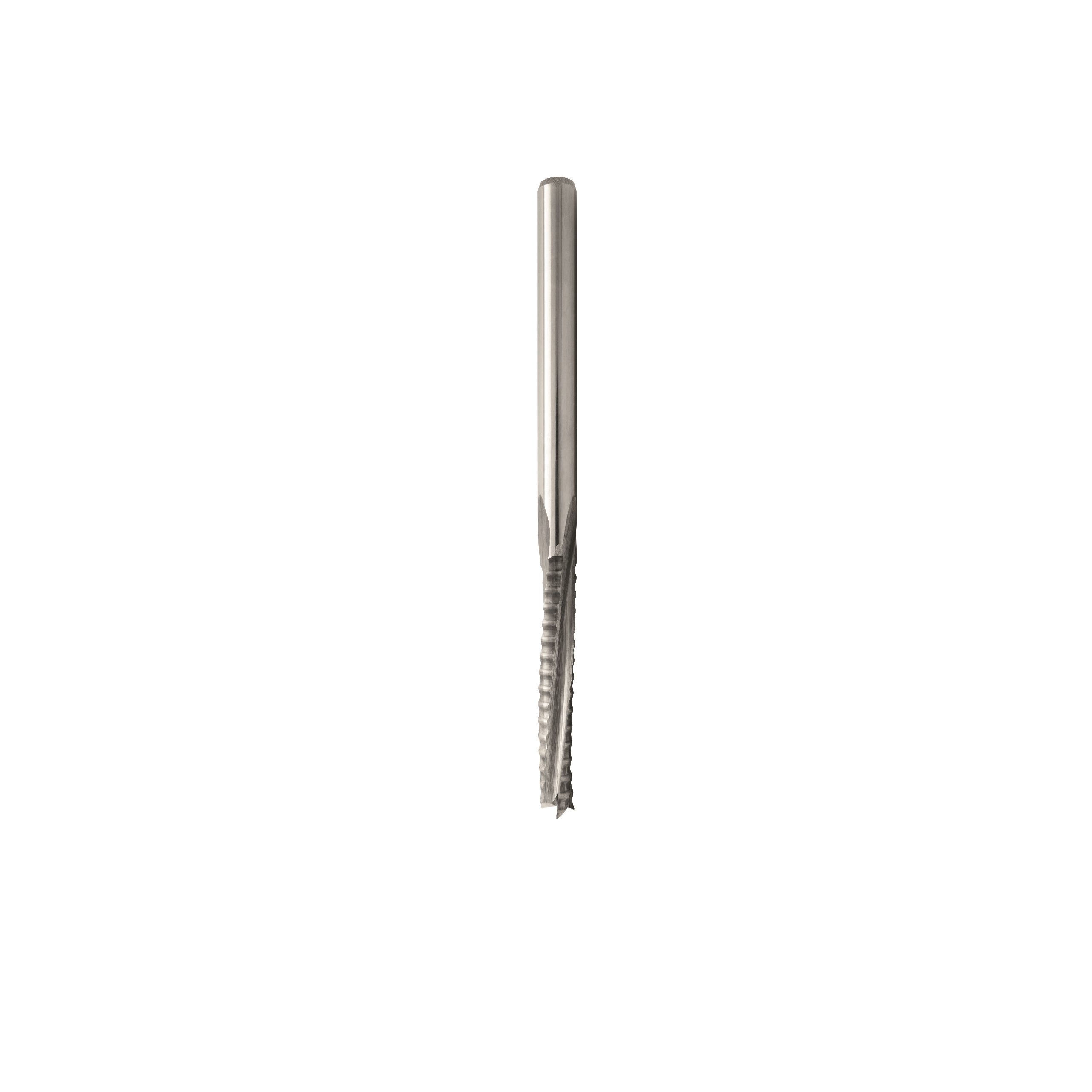

Solid carbide upcut spiral cutter with chipbreaker for roughing
Description:
Router cutter for boring, grooving and trimming softwood and hardwood, coated, veneered and uncoated wood base materials such as chipboard, plywood and MDF, composite materials (HPL, Corian®, etc).
Solid carbide cutter (HW). Wary profile pre-cutting router cutter reducing cutting effort. Positive helicoidal cutting edges for better chip removal.
Technical summary table:
| Cod. RH | Cod. RH Rivestimento UW-Dia Cod. RH UW-Dia Coating | D | I | S | LT |
|---|---|---|---|---|---|
| 214.082265.55 | 214.082265.55R | 8 | 22 | 8 | 65 |
| 214.083275.55 | 214.083275.55R | 8 | 32 | 8 | 75 |
| 214.103275.55 | 214.103275.55R | 10 | 32 | 10 | 75 |
| 214.104290.55 | 214.104290.55R | 10 | 42 | 10 | 90 |
| 214.123275.55 | 214.123275.55R | 12 | 32 | 12 | 75 |
| 214.124290.55 | 214.124290.55R | 12 | 42 | 12 | 90 |
| 214.1252100.55 | 214.1252100.55R | 12 | 52 | 12 | 100 |
| 214.1442100.55 | 214.1442100.55R | 14 | 42 | 14 | 100 |
| 214.1452100.55 | 214.1452100.55R | 14 | 52 | 14 | 100 |
| 214.1642100.55 | 214.1642100.55R | 16 | 42 | 16 | 100 |
| 214.1652100.55 | 214.1652100.55R | 16 | 52 | 16 | 100 |
| 214.1662110.55 | 214.1662110.55R | 16 | 62 | 16 | 110 |
| 214.1852100.55 | 214.1852100.55R | 18 | 52 | 18 | 100 |
| 214.1875130.55 | 214.1875130.55R | 18 | 75 | 18 | 130 |
| 214.2052100.55 | 214.2052100.55R | 20 | 52 | 20 | 100 |
| 214.2075130.55 | 214.2075130.55R | 20 | 75 | 20 | 130 |
| 214.20102150.55 | 214.20102150.55R | 20 | 102 | 20 | 150 |
