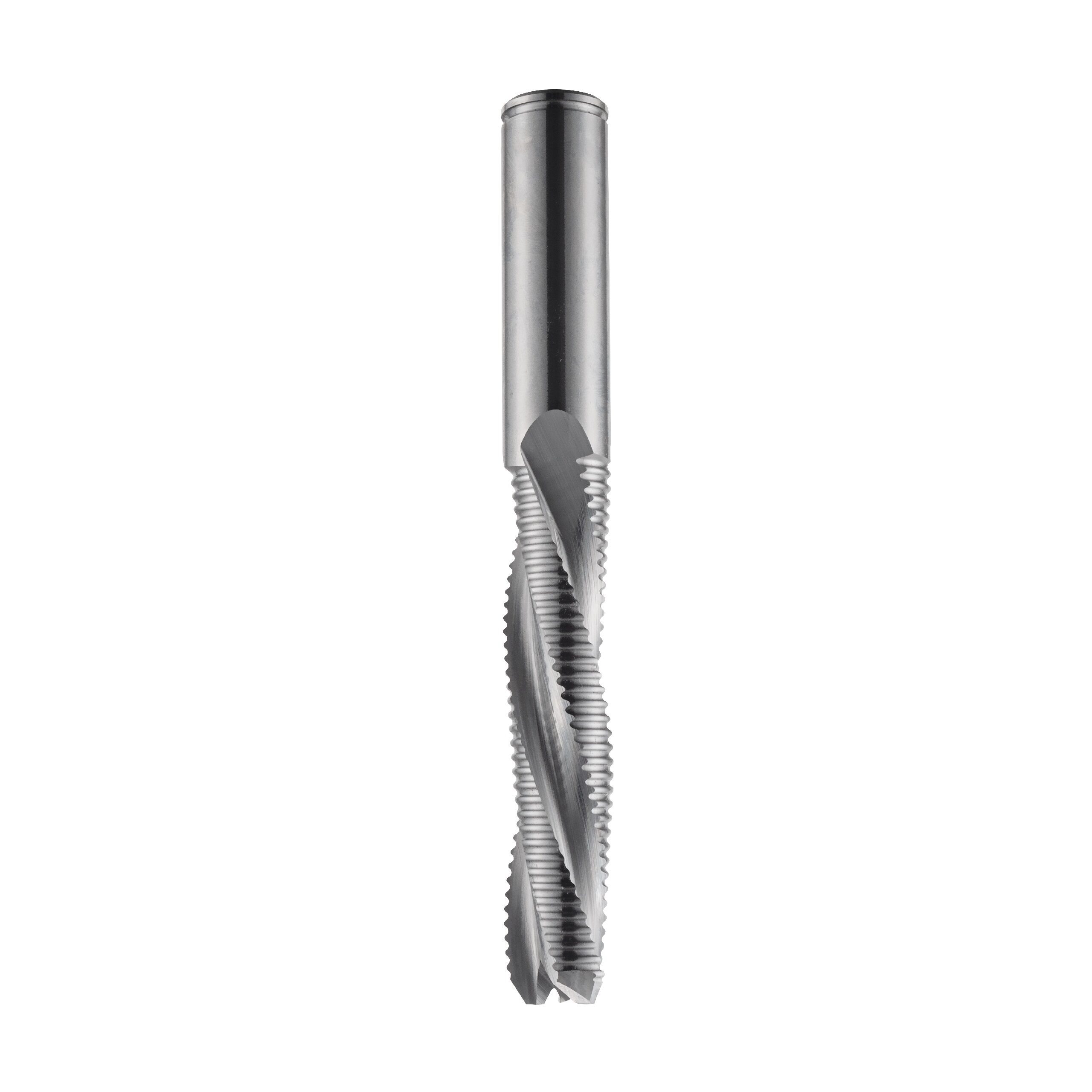

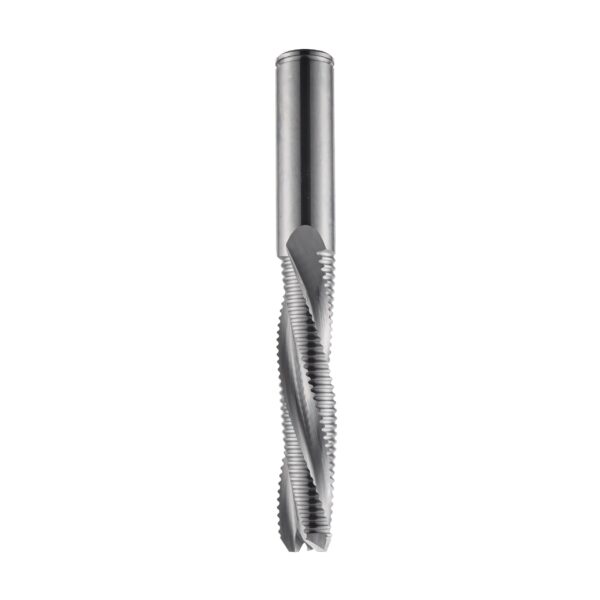

Solid carbide upcut spiral cutter with chipbreaker – 60° V-point- for locksets Z=3+R
Description:
Router cutter for boring, grooving and rebating. For production of doors lockset cases on softwood and hardwood, uncoated wood-based materials such as chipboards, plywood and MDF.
Solid tungsten carbide cutter (HW).
Positive helicoidal cutting edges with chipbreaker.
Technical summary table:
| Cod. RH | Cod. RH Rivestimento UW-Dia Cod. RH UW-Dia Coating | D | I | LT | S |
|---|---|---|---|---|---|
| 214SM.082263.55 | 214SM.082263.55R | 8 | 22 | 63 | 8 |
| 214SM.083272.55 | 214SM.083272.55R | 8 | 32 | 72 | 8 |
| 214SM.103272.55 | 214SM.103272.55R | 10 | 32 | 72 | 10 |
| 214SM.104290.55 | 214SM.104290.55R | 10 | 42 | 90 | 10 |
| 214SM.123273.55 | 214SM.123273.55R | 12 | 32 | 73 | 12 |
| 214SM.124290.55 | 214SM.124290.55R | 12 | 42 | 90 | 12 |
| 214SM.1252100.55 | 214SM.1252100.55R | 12 | 52 | 100 | 12 |
| 214SM.1442100.55 | 214SM.1442100.55R | 14 | 42 | 100 | 14 |
| 214SM.1452100.55 | 214SM.1452100.55R | 14 | 52 | 100 | 14 |
| 214SM.1642100.55 | 214SM.1642100.55R | 16 | 42 | 100 | 16 |
| 214SM.1652100.55 | 214SM.1652100.55R | 16 | 52 | 100 | 16 |
| 214SM.1662100.55 | 214SM.1662100.55R | 16 | 62 | 100 | 16 |
| 214SM.1852100.55 | 214SM.1852100.55R | 18 | 52 | 100 | 18 |
| 214SM.1875125.55 | 214SM.1875125.55R | 18 | 75 | 125 | 18 |
| 214SM.2052100.55 | 214SM.2052100.55R | 20 | 52 | 100 | 20 |
| 214SM.2075125.55 | 214SM.2075125.55R | 20 | 75 | 125 | 20 |
