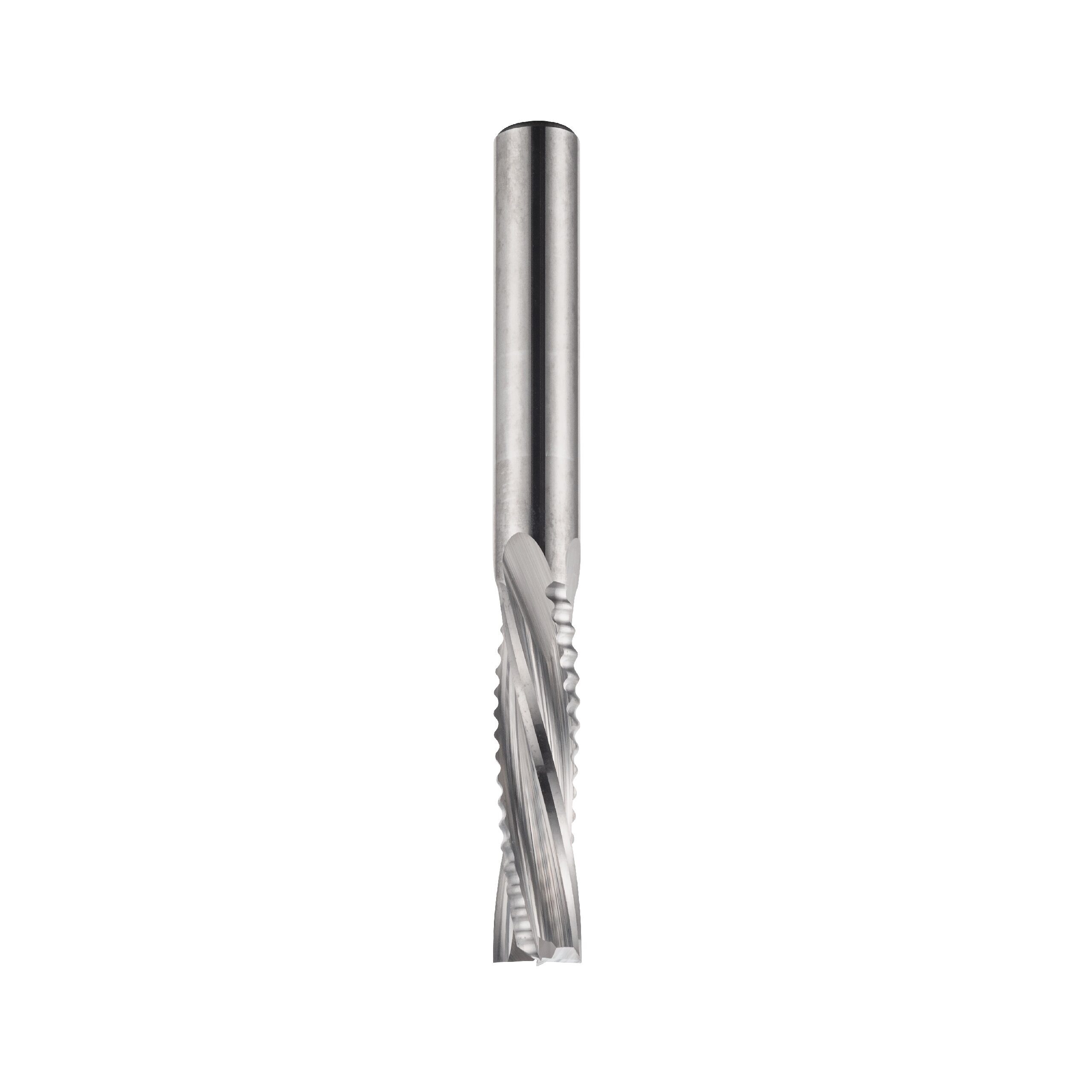

Solid carbide upcut spiral cutter with chipbreaker
Description:
Router cutter for boring, grooving and trimming softwood and hardwood, coated, veneered and uncoated wood base materials such as chipboard, plywood and MDF, composite materials (HPL, Corian®, etc).
Solid tungsten carbide cutter (HW). Wary profile mixed with finish cut for good performance. Positive helicoidal cutting edges for better chip removal.
Technical summary table:
| Cod. RH | Cod. RH Rivestimento UW-Dia Cod. RH UW-Dia Coating | D | I | LT | S |
|---|---|---|---|---|---|
| 209.123275.55 | 209.123275.55R | 12 | 32 | 75 | 12 |
| 209.124290.55 | 209.124290.55R | 12 | 42 | 90 | 12 |
| 209.1252100.55 | 209.1252100.55R | 12 | 52 | 100 | 12 |
| 209.1442100.55 | 209.1442100.55R | 14 | 42 | 100 | 14 |
| 209.1452100.55 | 209.1452100.55R | 14 | 52 | 100 | 14 |
| 209.163590.55 | 209.163590.55R | 16 | 35 | 90 | 16 |
| 209.1642100.55 | 209.1642100.55R | 16 | 42 | 100 | 16 |
| 209.1652100.55 | 209.1652100.55R | 16 | 52 | 100 | 16 |
| 209.1662110.55 | 209.1662110.55R | 16 | 62 | 110 | 16 |
| 209.1852100.55 | 209.1852100.55R | 18 | 52 | 100 | 18 |
| 209.1875125.55 | 209.1875125.55R | 18 | 75 | 125 | 18 |
| 209.2052100.55 | 209.2052100.55R | 20 | 52 | 100 | 20 |
| 209.2062120.55 | 209.2062120.55R | 20 | 62 | 120 | 20 |
| 209.2075130.55 | 209.2075130.55R | 20 | 75 | 125 | 20 |
