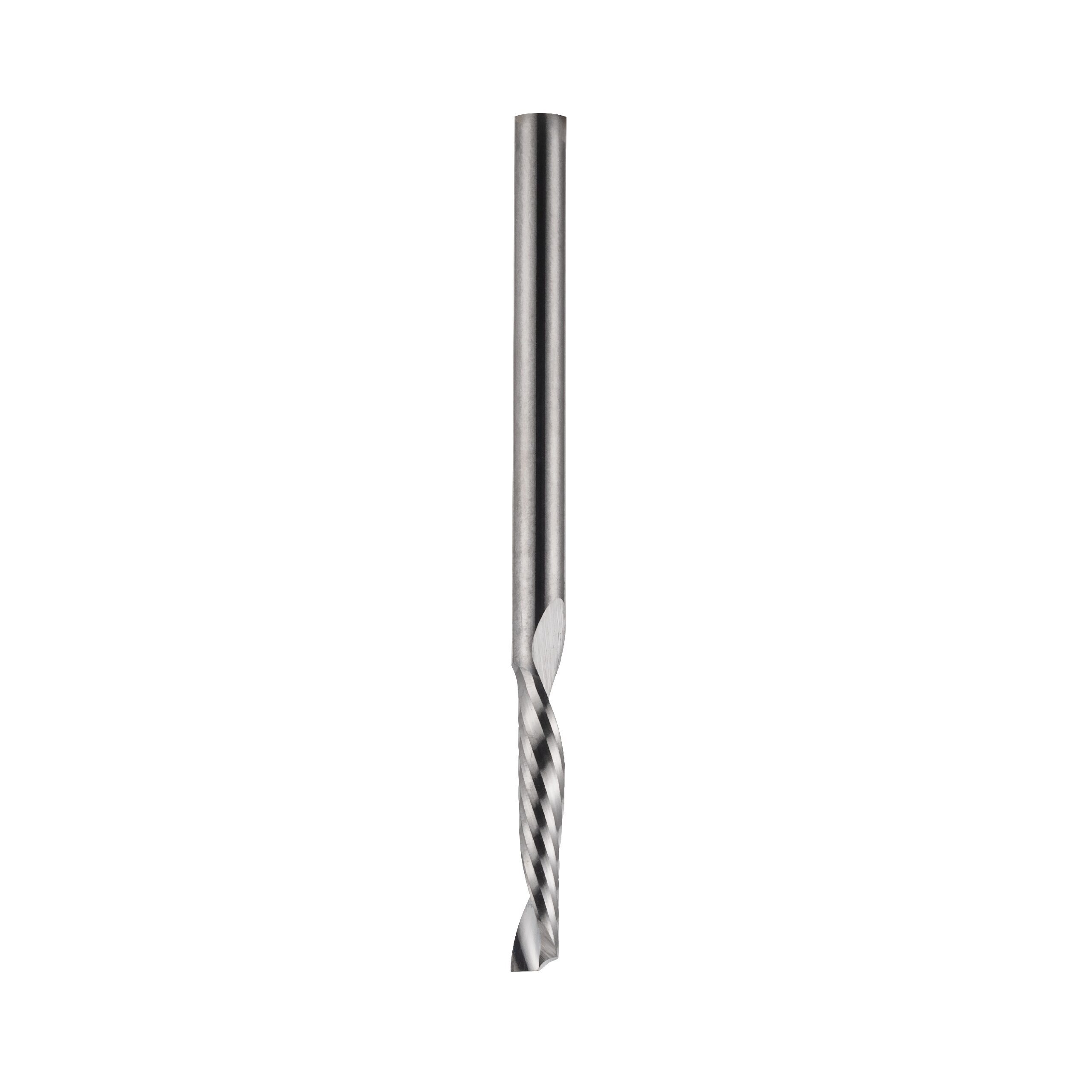

Solid carbide upcut spiral cutter for plastic with polished flutes
Description:
Helicoidal router cutter for boring, grooving and sizing plastic materials, etc.
Solid tungsten carbide cutter (HW). Positive helicoidal cutting edge shape and grinded top for excellent finishing quality, polished flutes for a better chip removal and longer life time.
Technical summary table:
| Cod. RH | Cod. RH Rivestimento UW-Dia Cod. RH UW-Dia Coating | D | I | LT | S |
|---|---|---|---|---|---|
| 217PL.031250.55 | 217PL.031250.55R | 3 | 12 | 50 | 3 |
| 217PL.041550.55 | 217PL.041550.55R | 4 | 15 | 50 | 4 |
| 217PL.051750.55 | 217PL.051750.55R | 5 | 17 | 50 | 5 |
| 217PL.061750.55 | 217PL.061750.55R | 6 | 17 | 50 | 6 |
| 217PL.062260.55 | 217PL.062260.55R | 6 | 22 | 60 | 6 |
| 217PL.062760.55 | 217PL.062760.55R | 6 | 27 | 60 | 6 |
| 217PL.082265.55 | 217PL.082265.55R | 8 | 22 | 65 | 8 |
| 217PL.083275.55 | 217PL.083275.55R | 8 | 32 | 75 | 8 |
| 217PL.103275.55 | 217PL.103275.55R | 10 | 32 | 75 | 10 |
| 217PL.104290.55 | 217PL.104290.55R | 10 | 42 | 90 | 10 |
| 217PL.123275.55 | 217PL.123275.55R | 12 | 32 | 75 | 12 |
