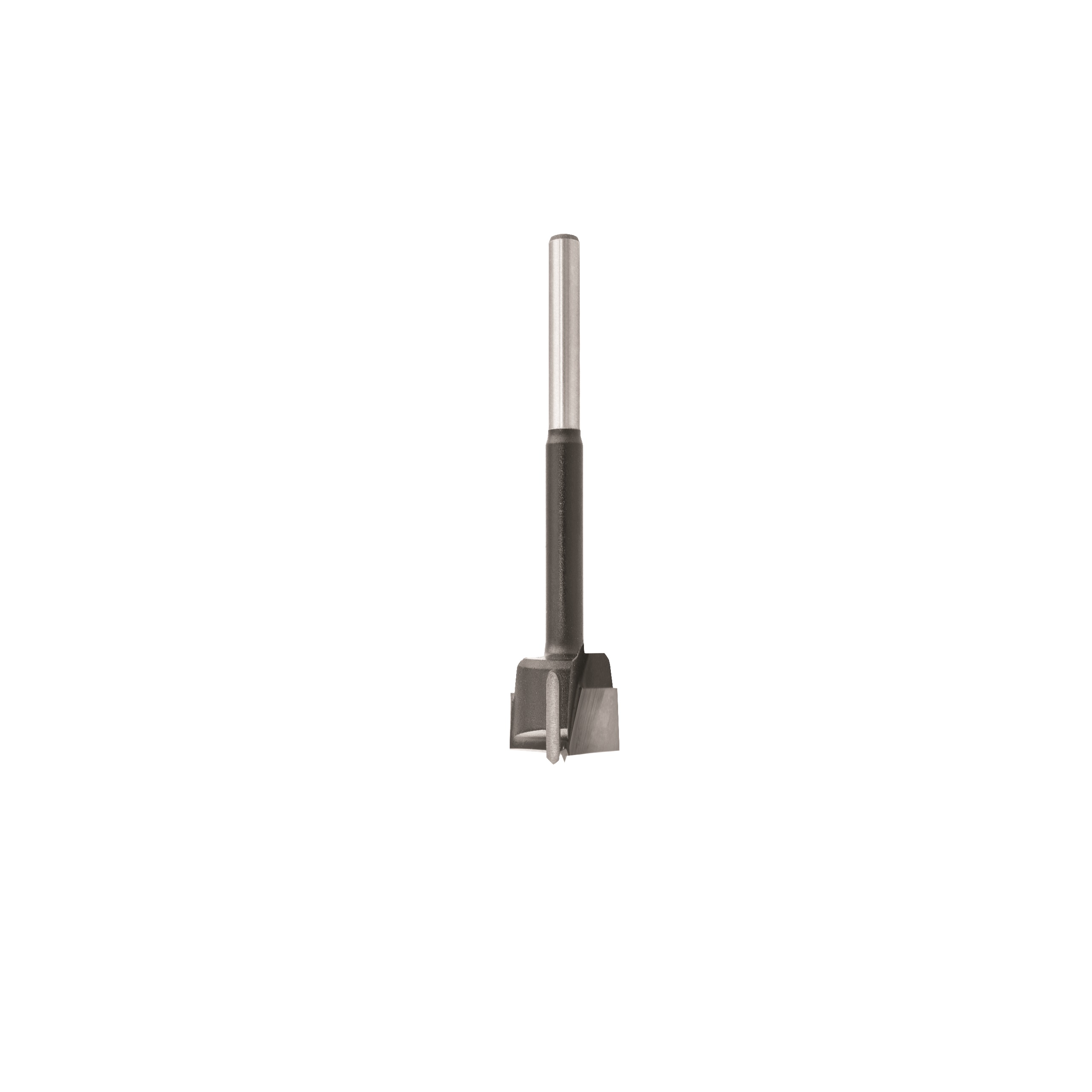

HW Hinge boring bit
Description:
To drill accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.
Ideal for creating hinge pockets.
Super-strength steel.
Orange or black P.T.F.E. coating.
HW centering point.
2 cutting edges Z=2.
2 negatively ground spurs.
Parallel shank with driving flat and length adjusting screw.
Technical summary table:
| Cod. RH | Cod. LH | D | S | LT |
|---|---|---|---|---|
| 317.140.11 | 317.140.12 | 14 | 10x26 | 57,5 |
| 317.150.11 | 317.150.12 | 15 | 10x26 | 57,5 |
| 317.160.11 | 317.160.12 | 16 | 10x26 | 57,5 |
| 317.170.11 | 317.170.12 | 17 | 10x26 | 57,5 |
| 317.180.11 | 317.180.12 | 18 | 10x26 | 57,5 |
| 317.190.11 | 317.190.12 | 19 | 10x26 | 57,5 |
| 317.200.11 | 317.200.12 | 20 | 10x26 | 57,5 |
| 317.220.11 | 317.220.12 | 22 | 10x26 | 57,5 |
| 317.240.11 | 317.240.12 | 24 | 10x26 | 57,5 |
| 317.250.11 | 317.250.12 | 25 | 10x26 | 57,5 |
| 317.260.11 | 317.260.12 | 26 | 10x26 | 57,5 |
| 317.280.11 | 317.280.12 | 28 | 10x26 | 57,5 |
| 317.300.11 | 317.300.12 | 30 | 10x26 | 57,5 |
| 317.320.11 | 317.320.12 | 32 | 10x26 | 57,5 |
| 317.340.11 | 317.340.12 | 34 | 10x26 | 57,5 |
| 317.350.11 | 317.350.12 | 35 | 10x26 | 57,5 |
| 317.380.11 | 317.380.12 | 38 | 10x26 | 57,5 |
| 317.400.11 | 317.400.12 | 40 | 10x26 | 57,5 |
| 369.140.11 | 369.140.12 | 14 | 10x26 | 70 |
| 369.150.11 | 369.150.12 | 15 | 10x26 | 70 |
| 369.160.11 | 369.160.12 | 16 | 10x26 | 70 |
| 369.180.11 | 369.180.12 | 18 | 10x26 | 70 |
| 369.200.11 | 369.200.12 | 20 | 10x26 | 70 |
| 369.220.11 | 369.220.12 | 22 | 10x26 | 70 |
| 369.250.11 | 369.250.12 | 25 | 10x26 | 70 |
| 369.260.11 | 369.260.12 | 26 | 10x26 | 70 |
| 369.300.11 | 369.300.12 | 30 | 10x26 | 70 |
| 369.350.11 | 369.350.12 | 35 | 10x26 | 70 |
| 369.400.11 | 369.400.12 | 40 | 10x26 | 70 |
| 370.180.11 | 370.180.12 | 18 | 10x26 | 77 |
| 370.200.11 | 370.200.12 | 20 | 10x26 | 77 |
| 370.250.11 | 370.250.12 | 25 | 10x26 | 77 |
| 370.300.11 | 370.300.12 | 30 | 10x26 | 77 |
| 370.350.11 | 370.350.12 | 10x26 | 77 |
