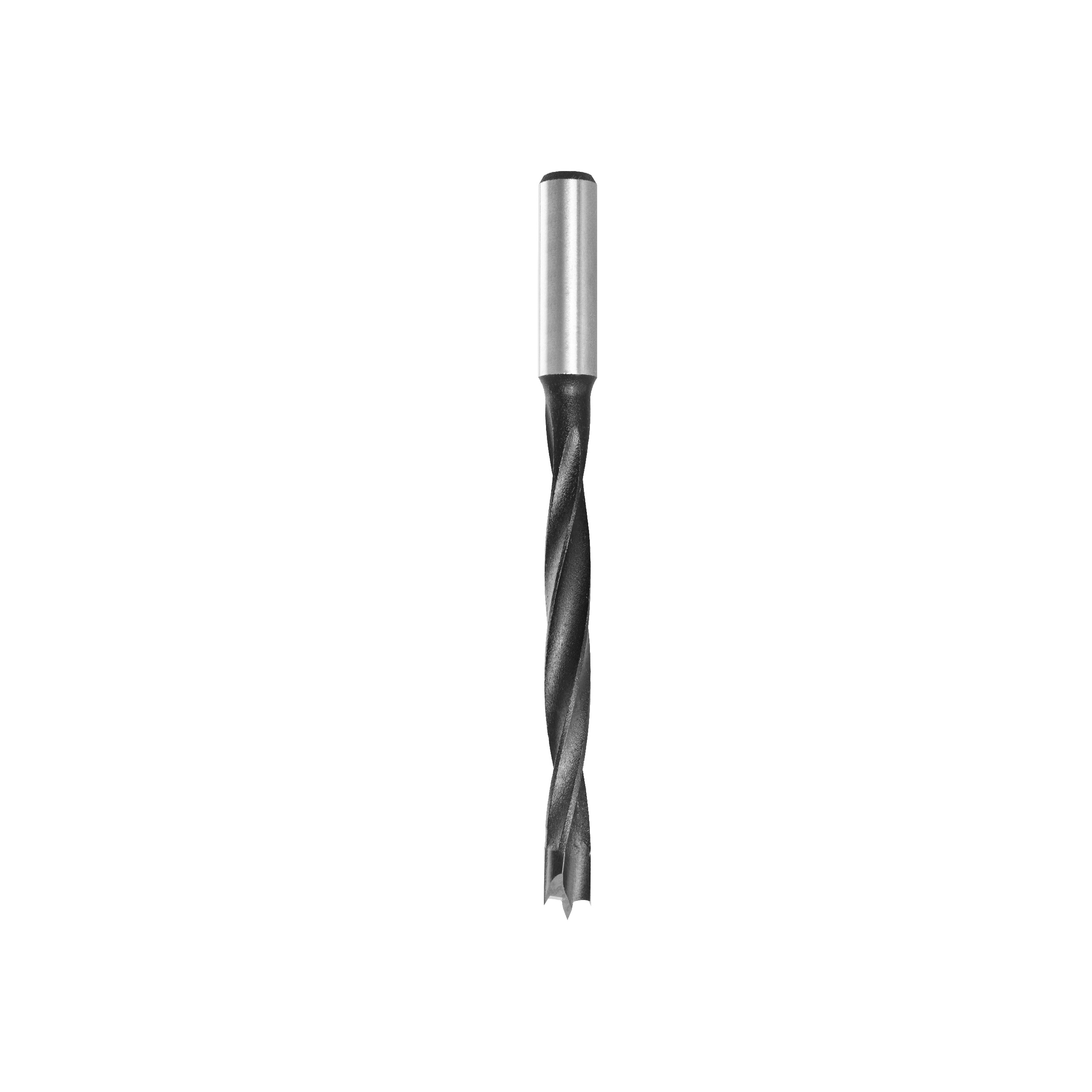

HW 4 flutes dowel drill with Ø 8 shank
Description:
To drill blind holes on solid wood, wood derivates and laminates.
Super-strength steel.
Orange or black P.T.F.E. coating.
HWM head. Centering point.
2 cutting edges Z=2.
2 negatively ground spurs.
4 spiral flutes.
Parallel shank with driving flat and length adjusting screw.
Technical summary table:
| Cod. RH | Cod. LH | D | l | S | LT |
|---|---|---|---|---|---|
| 306.030.21 | 3* | 18 | 8x20 | 55,5 | |
| 306.050.11 | 306.050.12 | 5 | 30 | 8x20 | 55,5 |
| 306.055.11 | 306.055.12 | 5,55 | 30 | 8x20 | 55,5 |
| 306.060.11 | 306.060.12 | 6 | 30 | 8x20 | 55,5 |
| 306.064.11 | 306.064.12 | 6,35 | 30 | 8x20 | 55,5 |
| 306.070.11 | 306.070.12 | 7 | 30 | 8x20 | 55,5 |
| 306.080.11 | 306.080.12 | 8 | 30 | 8x20 | 55,5 |
| 306.090.11 | 306.090.12 | 9 | 30 | 8x20 | 55,5 |
| 306.100.11 | 306.100.12 | 10 | 30 | 8x20 | 55,5 |
| 306.120.11 | 306.120.12 | 12 | 30 | 8x20 | 55,5 |
| 307.050.11 | 307.050.12 | 5 | 40 | 8x20 | 67 |
| 307.055.11 | 307.055.12 | 5,55 | 40 | 8x20 | 67 |
| 307.060.11 | 307.060.12 | 6 | 40 | 8x20 | 67 |
| 307.064.11 | 307.064.12 | 6,35 | 40 | 8x20 | 67 |
| 307.070.11 | 307.070.12 | 7 | 40 | 8x20 | 67 |
| 307.080.11 | 307.080.12 | 8 | 40 | 8x20 | 67 |
| 307.090.11 | 307.090.12 | 9 | 40 | 8x20 | 67 |
| 307.095.11 | 307.095.12 | 9,52 | 40 | 8x20 | 67 |
| 307.100.11 | 307.100.12 | 10 | 40 | 8x20 | 67 |
| 307.120.11 | 307.120.12 | 12 | 40 | 8x20 | 67 |
