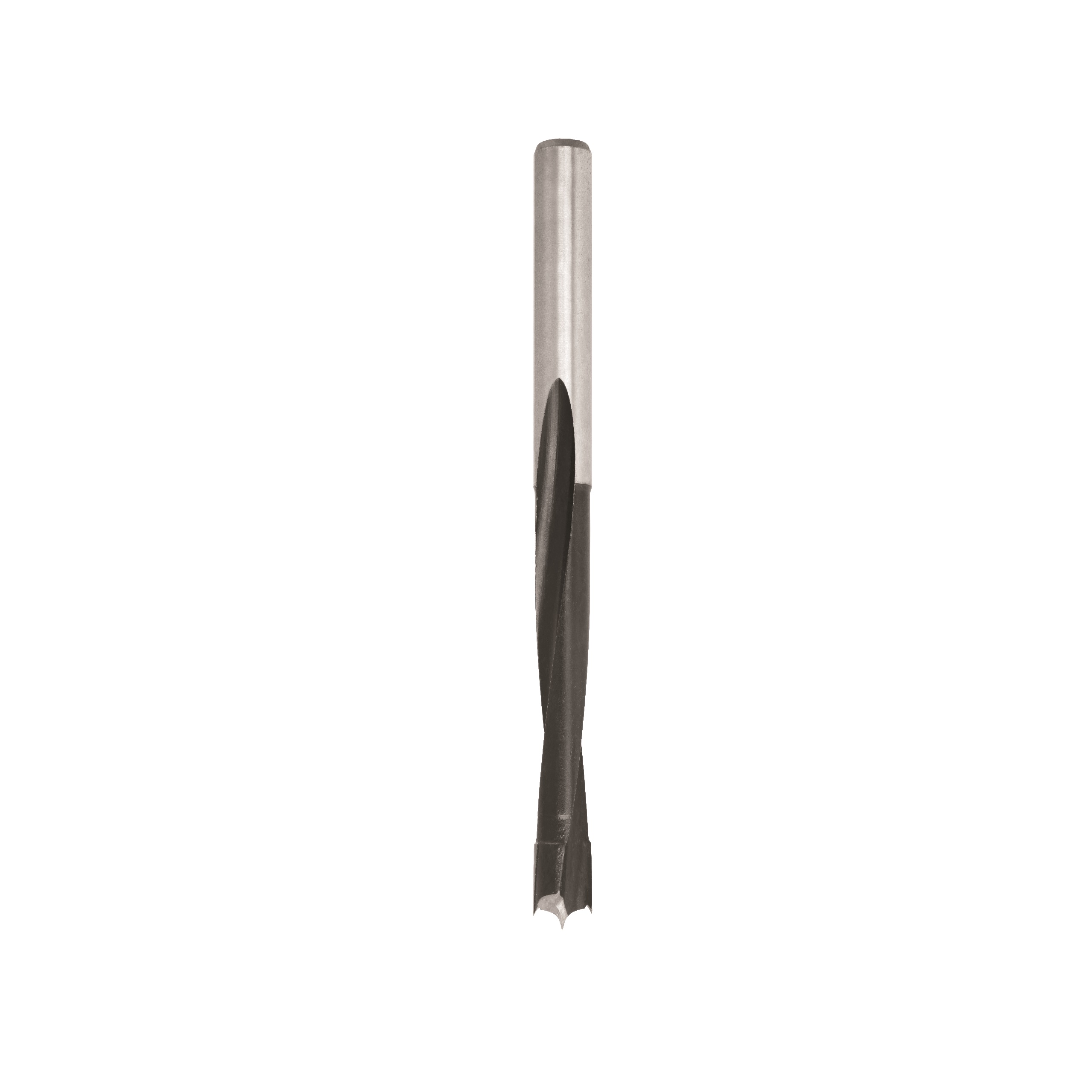

HW 2 flutes dowel drill
Description:
To drill blind holes in solid wood, wood composites, plastic and laminated materials.
Super-strength steel.
Orange or black P.T.F.E. coating.
HWM head. Centering point.
2 cutting edges Z=2.
2 negatively ground spurs.
2 spiral flutes.
Parallel shank with driving flat and length adjusting screw.
Technical summary table:
| Cod. RH | Cod. LH | D | l | S | LT |
|---|---|---|---|---|---|
| 311.040.11 | 311.040.12 | 4 | 26 | 10x30 | 70 |
| 311.045.11 | 311.045.12 | 4,5 | 35 | 10x30 | 70 |
| 311.047.11 | 311.047.12 | 4,76 | 35 | 10x30 | 70 |
| 311.050.11 | 311.050.12 | 5 | 35 | 10x30 | 70 |
| 311.051.11 | 311.051.12 | 5,1 | 35 | 10x30 | 70 |
| 311.052.11 | 311.052.12 | 5,2 | 35 | 10x30 | 70 |
| 311.055.11 | 311.055.12 | 5,55 | 35 | 10x30 | 70 |
| 311.060.11 | 311.060.12 | 6 | 35 | 10x30 | 70 |
| 311.064.11 | 311.064.12 | 6,35 | 35 | 10x30 | 70 |
| 311.065.11 | 311.065.12 | 6,5 | 35 | 10x30 | 70 |
| 311.070.11 | 311.070.12 | 7 | 35 | 10x30 | 70 |
| 311.080.11 | 311.080.12 | 8 | 35 | 10x30 | 70 |
| 311.082.11 | 311.082.12 | 8,2 | 35 | 10x30 | 70 |
| 311.090.11 | 311.090.12 | 9 | 35 | 10x30 | 70 |
| 311.095.11 | 311.095.12 | 9,52 | 35 | 10x30 | 70 |
| 311.100.11 | 311.100.12 | 10 | 35 | 10x30 | 70 |
| 311.110.11 | 311.110.12 | 11 | 35 | 10x30 | 70 |
| 311.111.11 | 311.111.12 | 11,1 | 35 | 10x30 | 70 |
| 311.120.11 | 311.120.12 | 12 | 35 | 10x30 | 70 |
| 311.127.11 | 311.127.12 | 12,7 | 35 | 10x30 | 70 |
| 311.130.11 | 311.130.12 | 13 | 35 | 10x30 | 70 |
| 311.140.11 | 311.140.12 | 14 | 35 | 10x30 | 70 |
| 311.150.11 | 311.150.12 | 15 | 35 | 10x30 | 70 |
| 311.160.11 | 311.160.12 | 16 | 35 | 10x30 | 70 |
