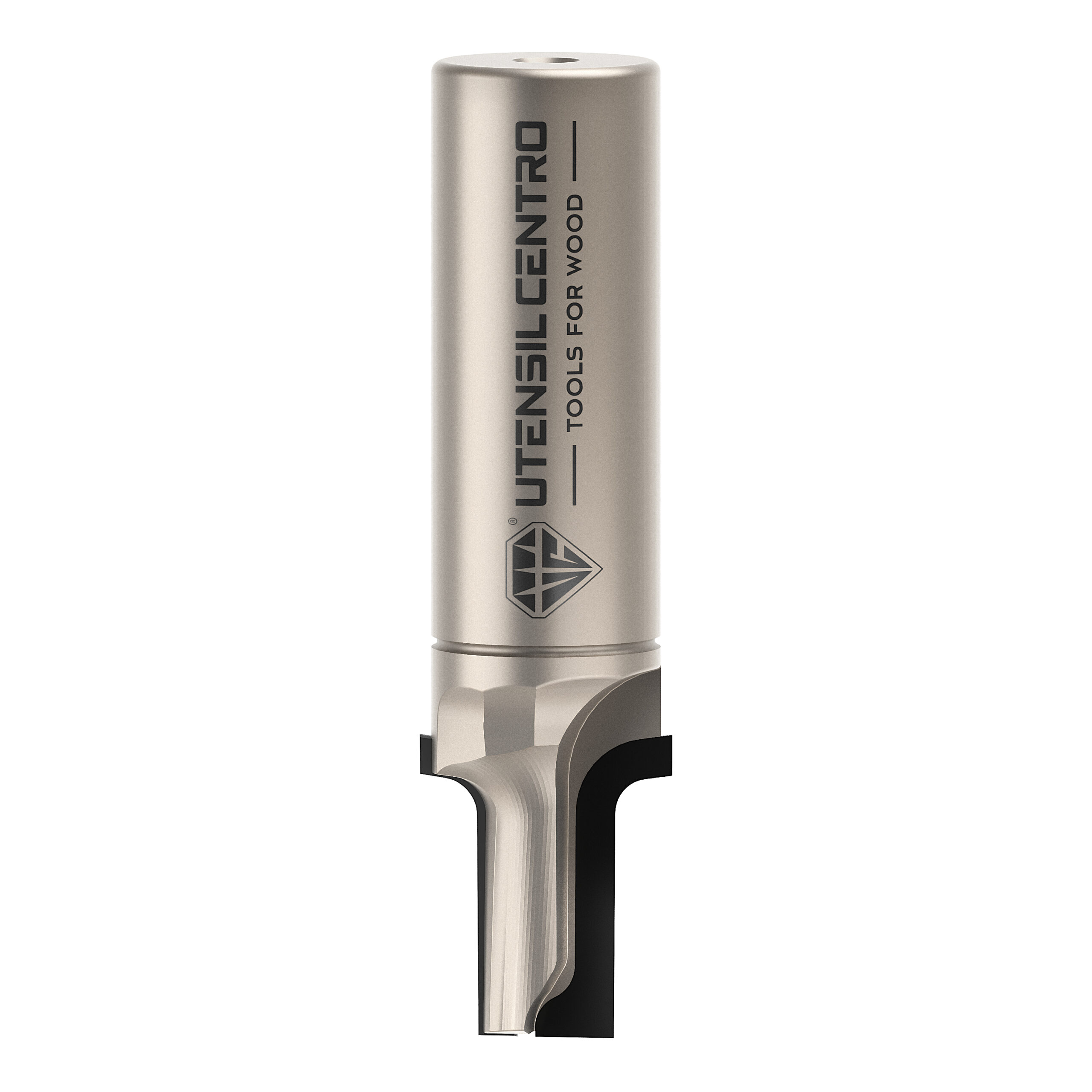

Diamond router cutter with radius
Description:
Radius router cutter for boring, grooving and trimming coated, veneered and wood-based materials (such as chipboard, plywood and MDF).
Steel body and brazed polycrystalline diamond tips (PCD). Straight cutting edges with radius for optimum finishing on the upper side of the panel. Polycrystalline diamond plunging tip (PCD) for boring. Can be re-sharpened 3-4 times.
Technical summary table:
| Cod. RH | D | d | I | S | LT | R | Z |
|---|---|---|---|---|---|---|---|
| 814.1218.75-R1 | 22 | 12 | 18,8 | 20 | 80 | 1 | 2+1DP |
| 814.1218.75-R2 | 22 | 12 | 18,6 | 20 | 80 | 2 | 2+1DP |
| 814.1218.75-R3 | 22 | 12 | 18,5 | 20 | 80 | 3 | 2+1DP |
| 814.1219.75-45 | 22 | 12 | 19 | 20 | 80 | 45° | 2+1DP |
| 814.1622.75-R1 | 26 | 16 | 22,8 | 20 | 85 | 1 | 2+1DP |
| 814.1622.75-R2 | 26 | 16 | 22,6 | 20 | 85 | 2 | 2+1DP |
| 814.1622.75-R3 | 26 | 16 | 22,5 | 20 | 85 | 3 | 2+1DP |
| 814.1622.75-45 | 26 | 16 | 23 | 20 | 85 | 45° | 2+1DP |
| 814.1625.75-R1 | 26 | 16 | 25,8 | 20 | 85 | 1 | 2+1DP |
| 814.1625.75-R2 | 26 | 16 | 25,6 | 20 | 85 | 2 | 2+1DP |
| 814.1625.75-R3 | 26 | 16 | 25,5 | 20 | 85 | 3 | 2+1DP |
| 814.1626.75-45 | 26 | 16 | 26 | 20 | 85 | 45° | 2+1DP |
