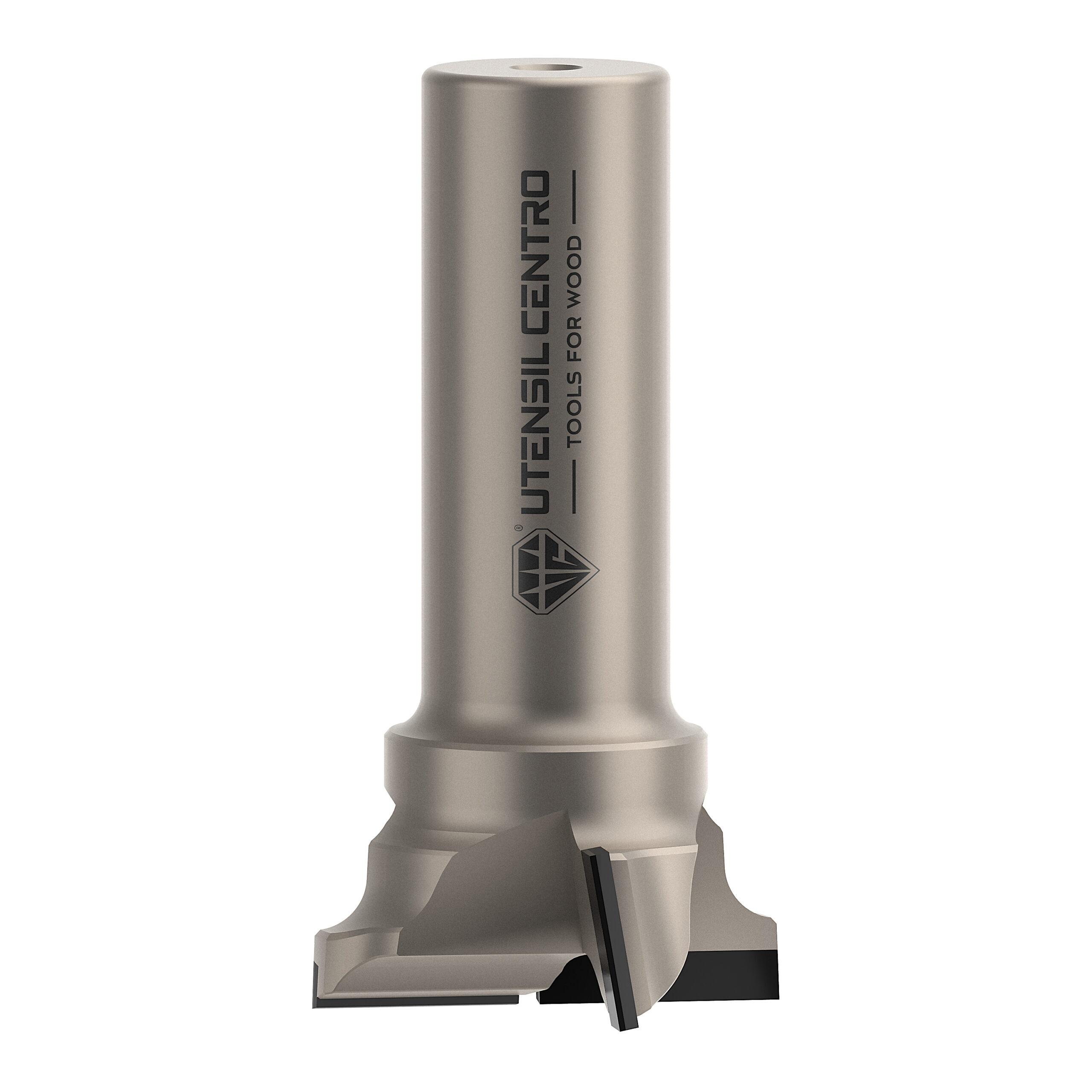

Diamond router cutter for rebates
Description:
Router cutter used for deep rebating operation in one time, primarily on door and kitchen panels. Recommended for use on coated and uncoated wood-based materials such as MDF.
Steel body and brazed polycrystalline diamond tips (PCD). Negative axial cutting edges to ensure optimal finishing on the upper side of the panel. Polycrystalline diamond (PCD) plunging tip for boring. Can be re-sharpened 6-7 times.
Technical summary table:
| Cod. RH | D | I | S | LT | Z |
|---|---|---|---|---|---|
| 889N.2015.75 | 20 | 15 | 20 | 80 | 3+1 |
| 889N.3520.75 | 35 | 20 | 20 | 75 | 2+2 |
| 889N.3815.75 | 38,1 | 15 | 19,05 | 63,5 | 2+2 |
| 889N.4014.75 | 40 | 14 | 20 | 75 | 2+2 |
| 889N.4415.75 | 44,45 | 15 | 19,05 | 63,5 | 2+2 |
| 889N.5014.75 | 50 | 14 | 20 | 75 | 2+2 |
| 889N.6014.75 | 60 | 14 | 20 | 75 | 2+2 |
