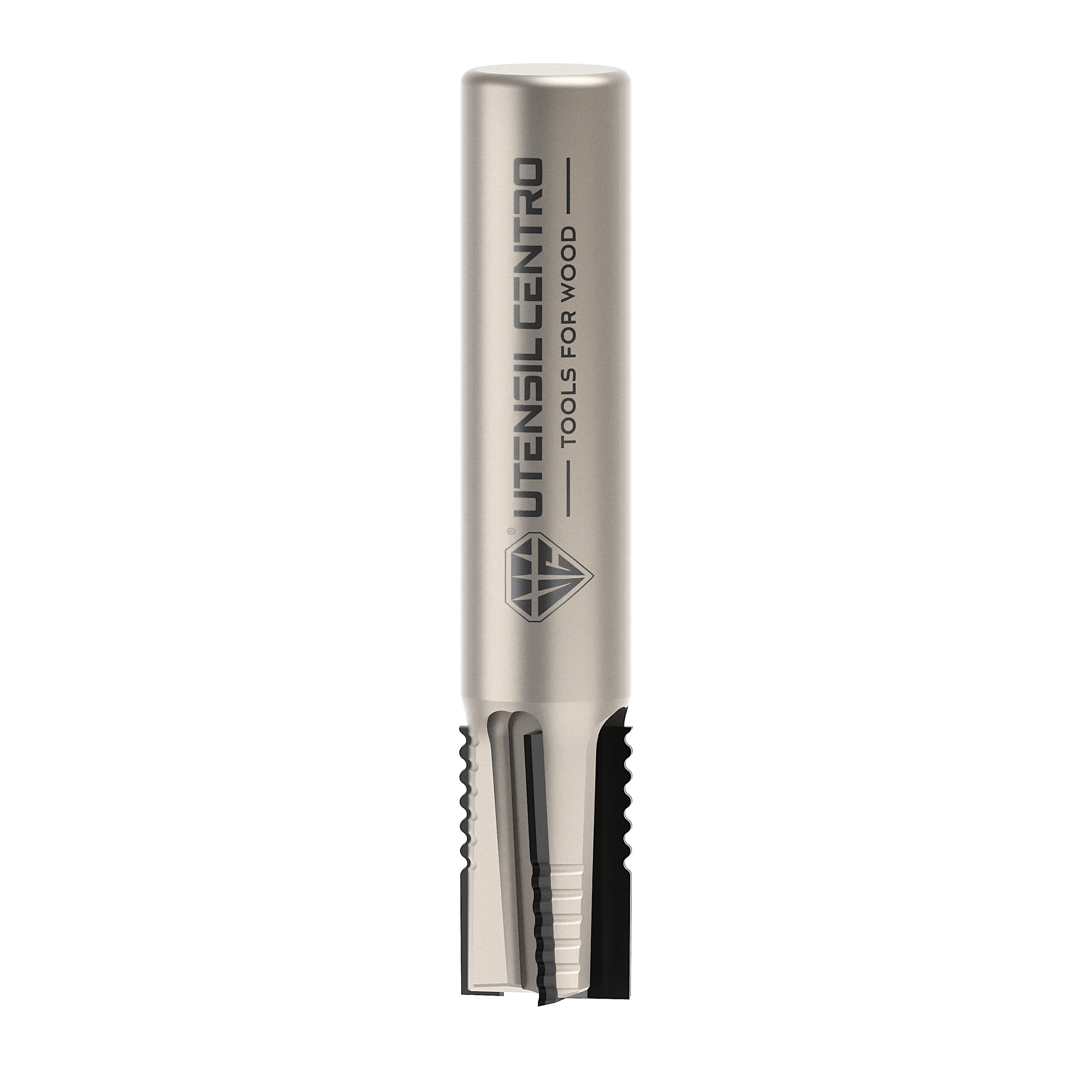

Diamond router cutter for nesting FORCE ONE
Description:
Router cutter for boring, grooving and trimming composite materials and high-pressure laminates such as HPL, TRESPA, Corian®, fibre cement, etc. Recommended for nesting operations.
High-density steel body and brazed polycrystalline diamond tips (PCD). Alternating axial cutting edges with chip-breaker to ensure optimal chip evacuation, finishing and high feed speed. Polycrystalline diamond (PCD) plunging tip for boring. Can be re-sharpened 3-4 times.
Technical summary table:
| Cod. RH | D | I | S | LT | Z |
|---|---|---|---|---|---|
| 813B.1219.75 | 12 | 19 | 12 | 65 | 4 |
| 813B.1224.75 | 12 | 24 | 12 | 70 | 4 |
| 813B.1228.75 | 12 | 28 | 12 | 75 | 4 |
| 813B.1419.75 | 14 | 19 | 14 | 70 | 4 |
| 813B.1424.75 | 14 | 24 | 14 | 75 | 4 |
| 813B.1428.75 | 14 | 28 | 14 | 80 | 4 |
| 813B.1624.75 | 16 | 24 | 16 | 75 | 4 |
| 813B.1628.75 | 16 | 28 | 16 | 80 | 4 |
