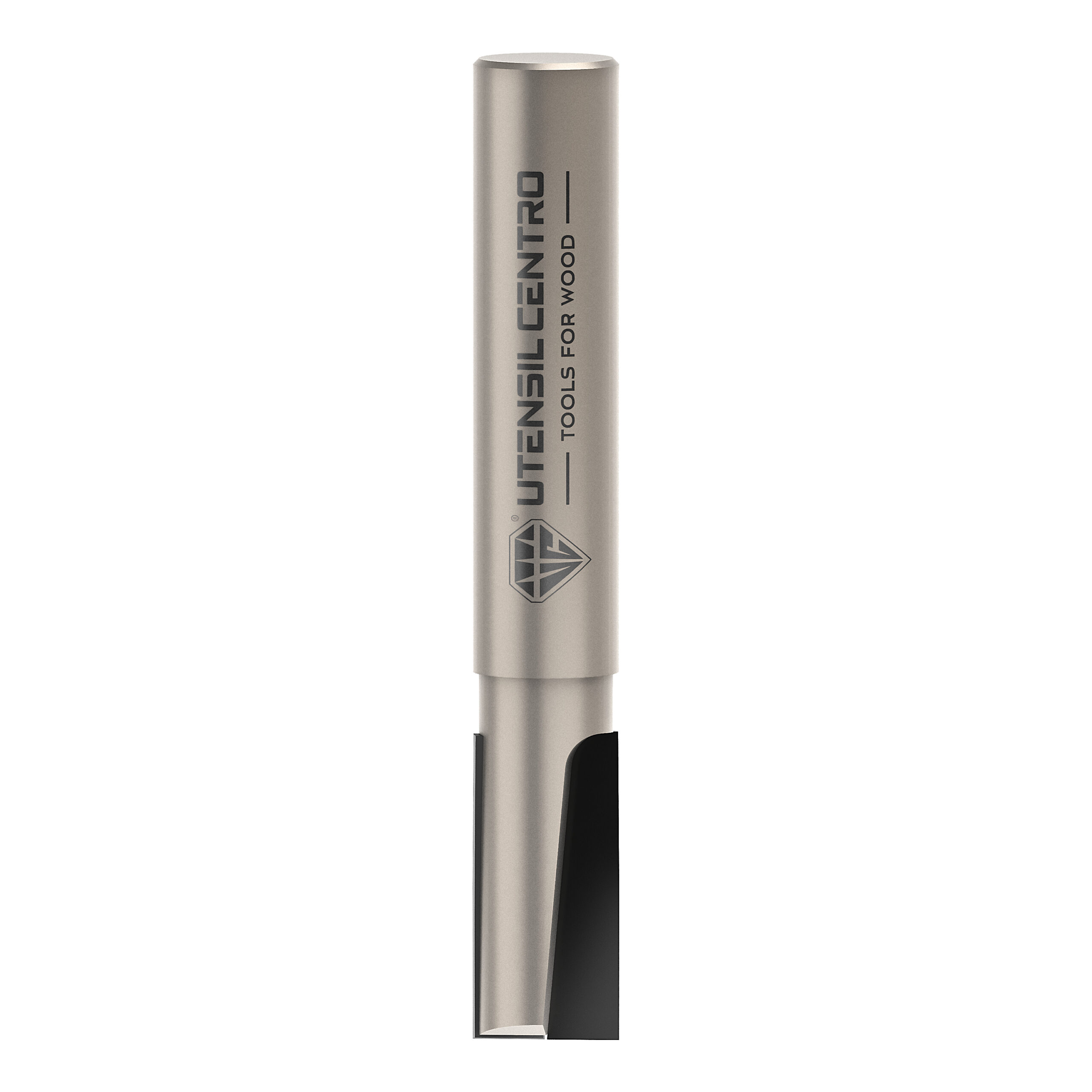

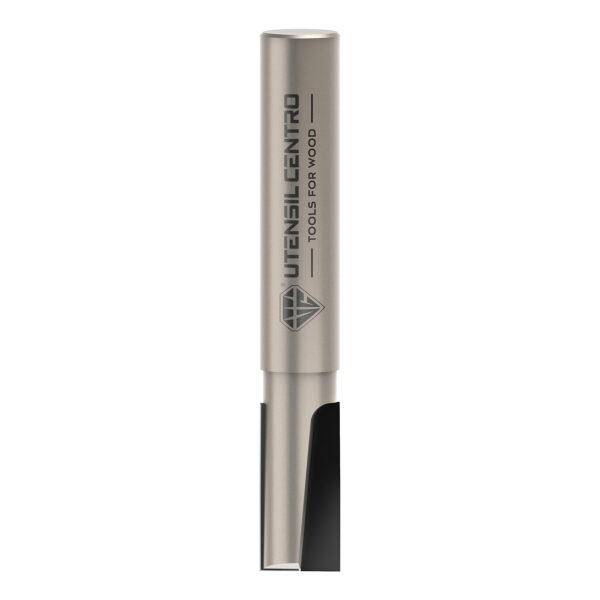

Diamond router cutter for nesting
Description:
Router cutter for boring, grooving and trimming composites and high-pressure laminates such as HPL, TRESPA, Corian®, fibre cement, etc. Recommended for nesting operations.
Tungsten carbide (HW) body with a hardness of 92.3HRA and brazed polycrystalline diamond tips (PCD). Alternating axial cutting edges arranged to ensure great finishing on both sides of the panel as well as optimal chip evacuation. Polycrystalline diamond (PCD) plunging tip for boring. Can be re-sharpened 3-4 times.
Technical summary table:
| Cod. RH | D | I | S | LT | Z |
|---|---|---|---|---|---|
| 813.0815.75 | 8 | 15 | 8 | 75 | 1+1 |
| 816.1015.75 | 10 | 15 | 10 | 75 | 1+1 |
| 813.1021.75 | 10 | 21 | 10 | 70 | 1+1 |
| 813.1025.75 | 10 | 25 | 10 | 70 | 1+1 |
| 813.1221.75 | 12 | 21 | 12 | 70 | 1+1 |
| 813.1225.75 | 12 | 25 | 12 | 70 | 1+1 |
| 813.1228.75 | 12 | 28 | 12 | 80 | 1+1 |
| 813.1421.75 | 14 | 21 | 14 | 70 | 1+1 |
| 813.1425.75 | 14 | 25 | 14 | 70 | 1+1 |
| 813.1433.75 | 14 | 33 | 14 | 80 | 1+1 |
| 813.1621.75 | 16 | 21 | 16 | 70 | 1+1 |
| 813.1625.75 | 16 | 25 | 16 | 70 | 1+1 |
| 813.1633.75 | 16 | 33 | 16 | 80 | 1+1 |
