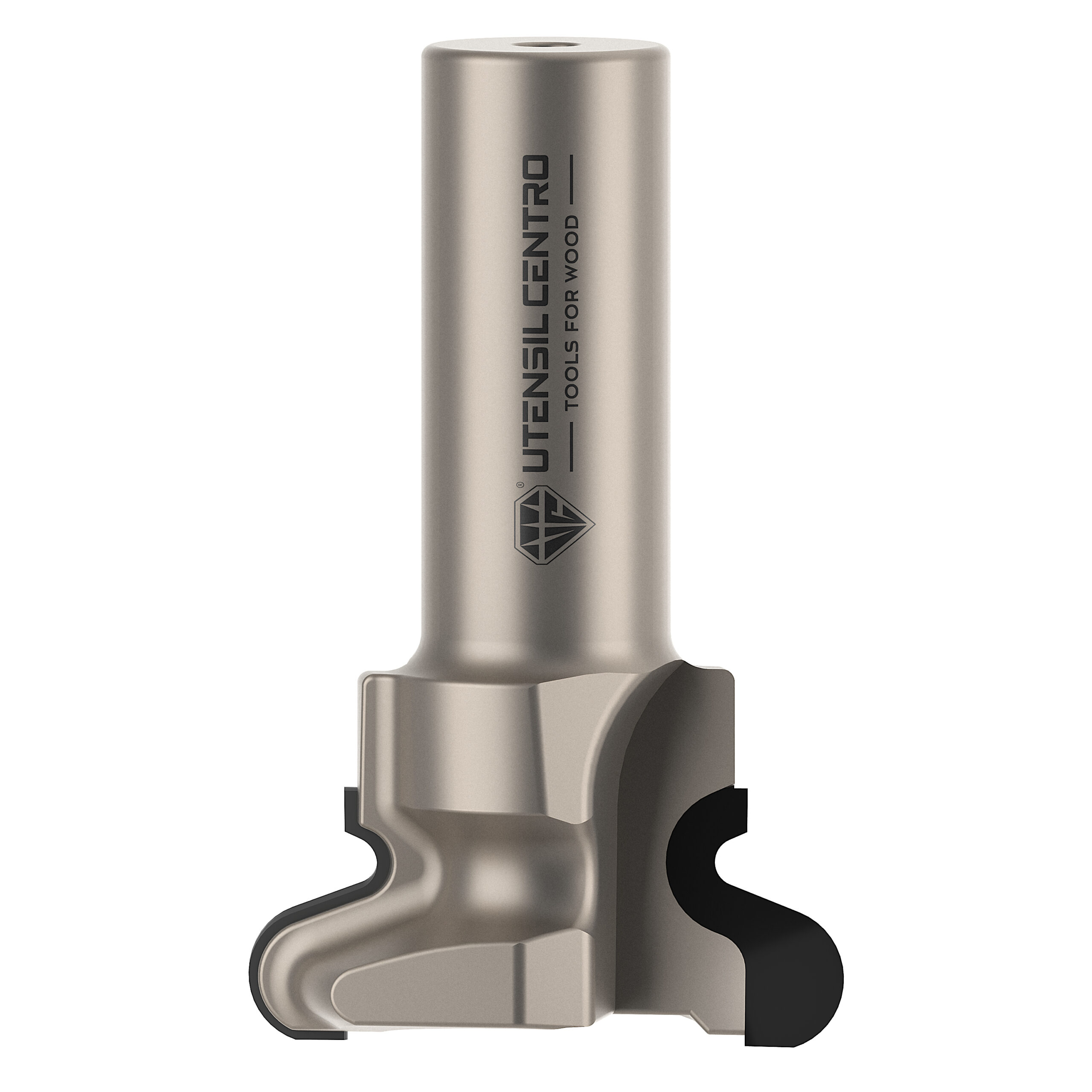

Diamond router cutter for handles
Description:
Profile router cutter for uncoated MDF, HPL and composites. Used to create handle grooves on panel.
Steel body and brazed polycrystalline diamond tips (PCD). Can be re-sharpened 6-7 times.
Technical summary table:
| Cod. RH | D | d | T1 | l | R | R1 | S | LT | Z |
|---|---|---|---|---|---|---|---|---|---|
| 899M-1 | 19,05 | 9,5 | 14 | 20 | 4,76 | 2,4 | 8 | 65 | 2 |
| 899M-1A | 19,05 | 9,5 | 14 | 20 | 4,76 | 2,4 | 12 | 70 | 2 |
| 899M-2 | 29 | 11 | 15 | 21 | 4,8 | 2,3 | 12 | 70 | 2 |
| 899M-2A | 29 | 11 | 15 | 21 | 4,8 | 2,3 | 20 | 80 | 2 |
| 899M-4 | 38,1 | 17 | 16 | 21,7 | 6 | 1,8 | 12 | 75 | 2 |
| 899M-4A | 38,1 | 17 | 16 | 21,7 | 6 | 1,8 | 20 | 85 | 2 |
| 899M-5 | 47,6 | 24 | 22 | 29,5 | 6,35 | 3,2 | 12 | 80 | 2 |
| 899M-5A | 47,6 | 24 | 22 | 29,5 | 6,35 | 3,2 | 20 | 90 | 2 |
