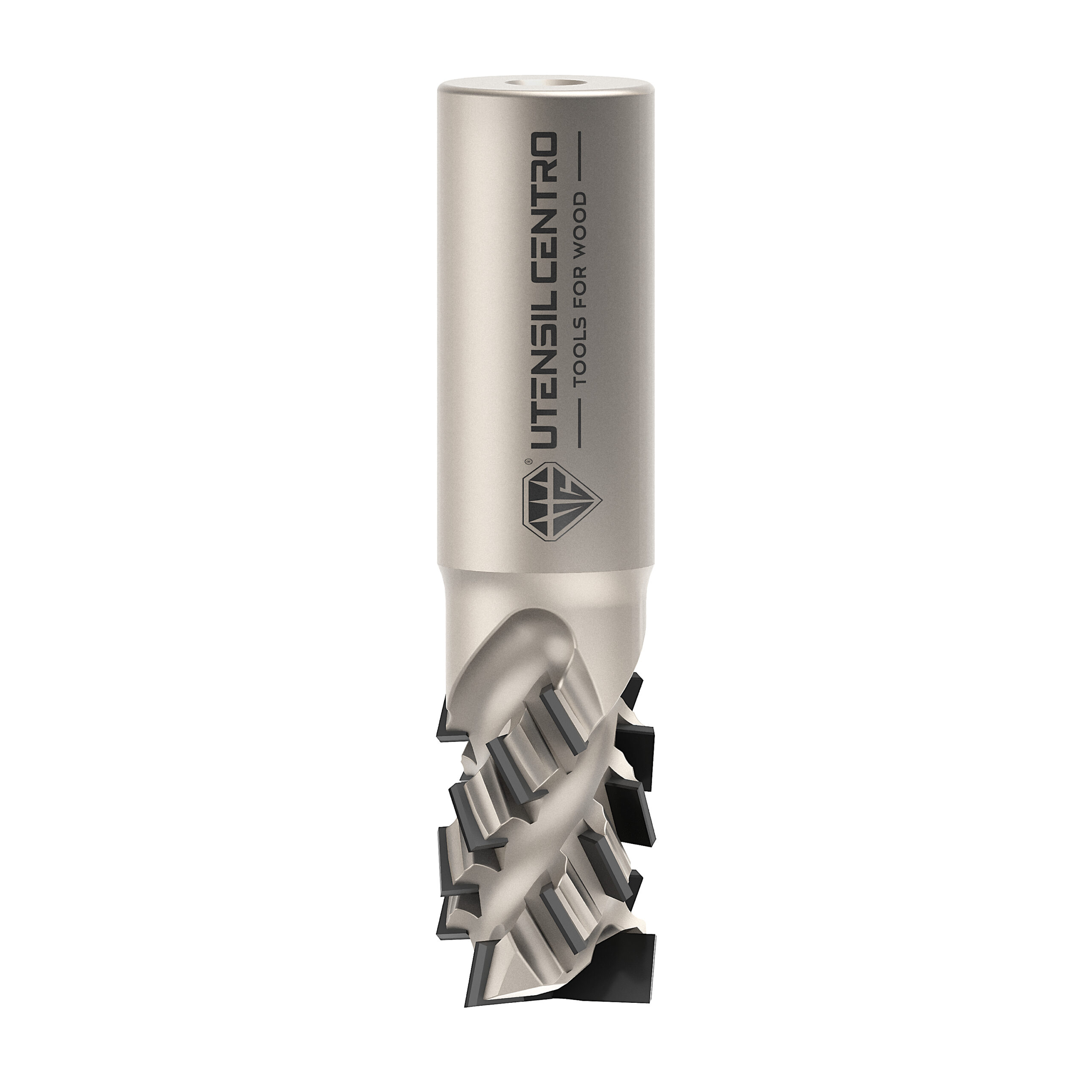

Diamond router cutter for boring and milling POWER
Description:
Router cutter for boring, grooving and cutting coated, veneered and wood-based materials (such as chipboard, plywood and MDF).
Steel body and brazed polycrystalline diamond tips (PCD). Alternating axial cutting edges arranged to ensure great finishing on both sides of the panel as well as optimal chip evacuation. Polycrystalline diamond (PCD) plunging tip for boring. High feed performance (up to 30 m/min).
Can be re-sharpened 8-10 times.
Technical summary table:
| Cod. RH | Cod. LH | D | I | S | LT | Z |
|---|---|---|---|---|---|---|
| 808S.1625.75 | 808S.1625.76 | 16 | 25 | 16 | 90 | 12 |
| 808S.1630.75 | 808S.1630.76 | 16 | 30 | 16 | 95 | 15 |
| 808S.1636.75 | 808S.1636.76 | 16 | 36 | 16 | 100 | 18 |
| 808S.2025.75 | 808S.2025.76 | 20 | 25 | 20 | 90 | 12 |
| 808S.2030.75 | 808S.2030.76 | 20 | 30 | 20 | 95 | 15 |
| 808S.2036.75 | 808S.2036.76 | 20 | 36 | 20 | 100 | 18 |
| 808S.2042.75 | 808S.2042.76 | 20 | 42 | 20 | 105 | 21 |
| 808S.2047.75 | 808S.2047.76 | 20 | 47 | 20 | 110 | 24 |
| 808S.2053.75 | 808S.2053.76 | 20 | 53 | 20 | 120 | 27 |
| 808S.2225.75 | 808S.2225.76 | 22 | 25 | 20 | 90 | 12 |
| 808S.2230.75 | 808S.2230.76 | 22 | 30 | 20 | 95 | 15 |
| 808S.2236.75 | 808S.2236.76 | 22 | 36 | 20 | 100 | 18 |
| 808S.2242.75 | 808S.2245.76 | 22 | 42 | 20 | 105 | 21 |
| 808S.2247.75 | 808S.2247.76 | 22 | 47 | 20 | 110 | 24 |
| 808S.2253.75 | 808S.2253.76 | 22 | 53 | 20 | 120 | 27 |
| 808S.2525.75 | 808S.2525.76 | 25 | 25 | 25 | 95 | 12 |
| 808S.2530.75 | 808S.2530.76 | 25 | 30 | 25 | 100 | 15 |
| 808S.2536.75 | 808S.2536.76 | 25 | 36 | 25 | 105 | 18 |
| 808S.2542.75 | 808S.2542.76 | 25 | 42 | 25 | 110 | 21 |
| 808S.2547.75 | 808S.2547.76 | 25 | 47 | 25 | 115 | 24 |
| 808S.2553.75 | 808S.2553.76 | 25 | 53 | 25 | 125 | 27 |
| 808S.2558.75 | 808S.2558.76 | 25 | 58 | 25 | 130 | 30 |
| 808S.2565.75 | 808S.2565.76 | 25 | 65 | 25 | 135 | 33 |
| 808S.2570.75 | 808S.2570.76 | 25 | 70 | 25 | 140 | 36 |
| 808S.2575.75 | 808S.2575.76 | 25 | 75 | 25 | 145 | 39 |
| 808S.2580.75 | 808S.2580.76 | 25 | 80 | 25 | 150 | 42 |
