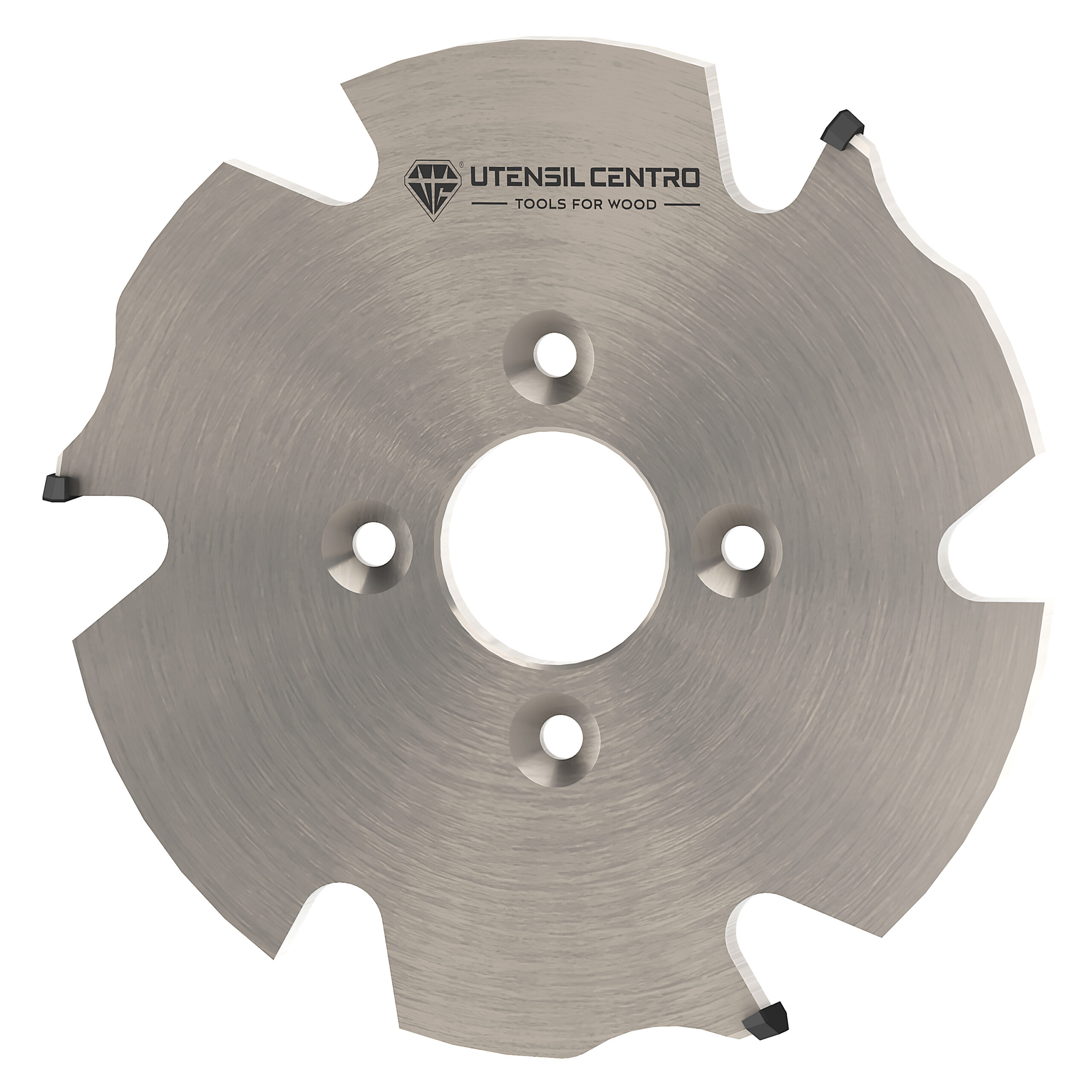

Diamond cutter for joints
Description:
Router cutter for high-precision joints. Suitable for P-System® Lamello®. The tools can be fitted on the chucks, items no. 200.410.30 or 200.410.22.
Steel body and brazed polycrystalline diamond tips (PCD). Suitable for manual feed (MAN). Re-sharpening not recommended.
Technical summary table:
Cod. RH | D | B | b | d | Z | FT |
---|---|---|---|---|---|---|
820L.100470223 | 100,4 | 7 | 4 | 22 | 3 | 4/4,4-8/36 |
820L.100470226 | 100,4 | 7 | 4 | 22 | 6 | 4/4,4-8/36 |
820L.100470303 | 100,4 | 7 | 4 | 30 | 3 | 4/6,6-12/48 |
820L.100470306 | 100,4 | 7 | 4 | 30 | 6 | 4/6,6-12/48 |
820L.100470353 | 100,4 | 7 | 4 | 35 | 3 | 4/5,5-11,5/50 |
820L.100470483 | 100,4 | 7 | 4 | 48 | 3 | 4/5,5-10,4/61 |
820L.100396226 | 100 | 3,96 | 3 | 22 | 6 | 4/4,5-9,5/36 |
820L.100396306 | 100 | 3,96 | 3 | 30 | 6 | 4/6,5-9,5/48 |
