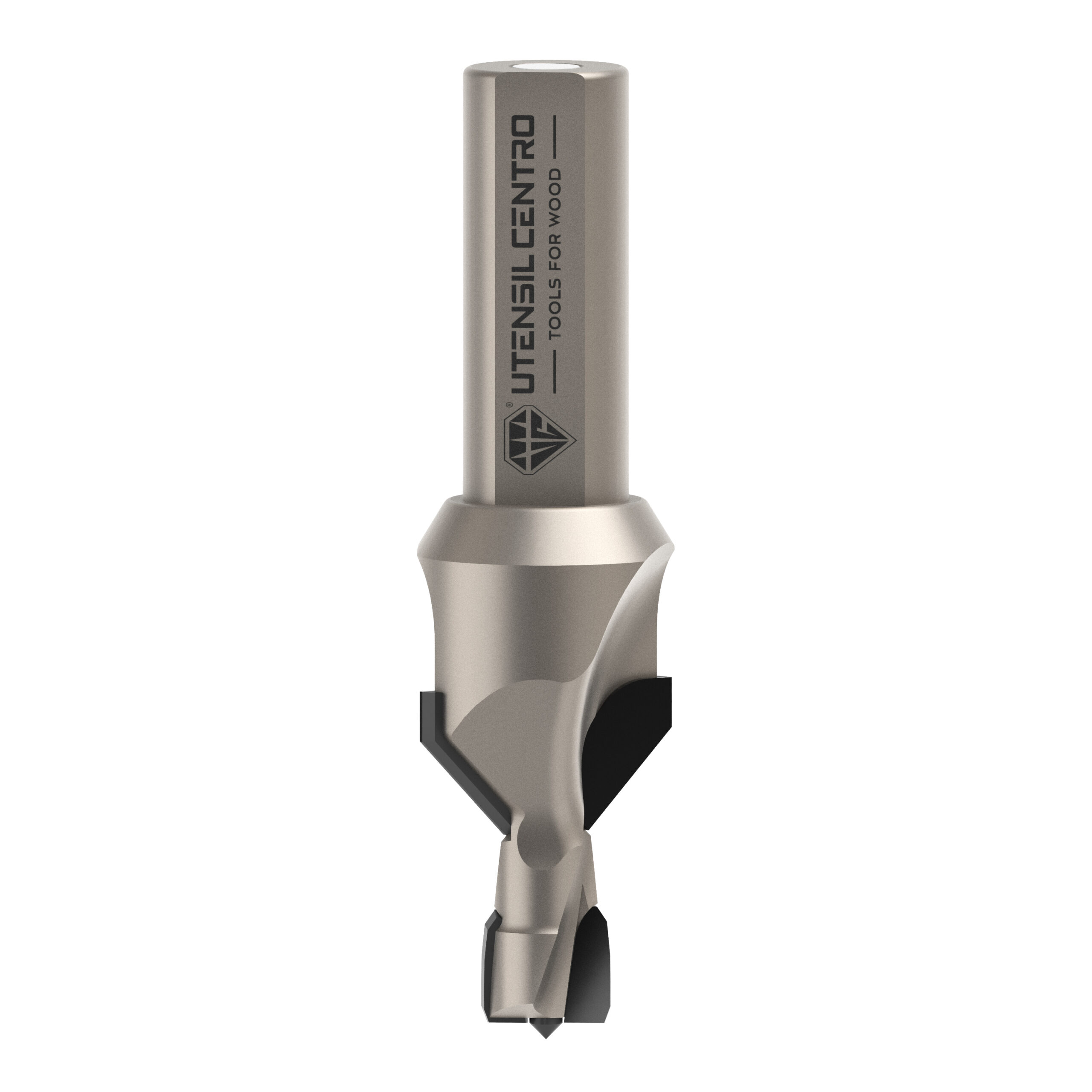

Diamond boring bit with countersink
Description:
Boring bit for solid wood, coated, veneered and uncoated wood-based materials (such as chipboard, plywood and MDF).
Steel body and brazed polycrystalline diamond tips (PCD). For work requiring long tool life, suitable for large-scale production. With optimised helix design for better chip evacuation. Supplied with M5x10 DIN 916 screw. “Weeke” adjustment screw for quick change supplied on request.
Technical summary table:
| Cod. RH | Cod. LH | D | l | S | LT | Z |
|---|---|---|---|---|---|---|
| 399.0812.57.75 | 399.0812.57.76 | 8 | 12 | 10x25+P.V. | 57 | 2+2 |
| 399.0813.57.75 | 399.0813.57.76 | 8 | 13 | 10x25+P.V. | 57 | 2+2 |
| 399.0815.57.75 | 399.0815.57.76 | 8 | 15 | 10x25+P.V. | 57 | 2+2 |
| 399.0820.57.75 | 399.0820.57.76 | 8 | 20 | 10x25+P.V. | 57 | 2+2 |
| 399.1012.57.75 | 399.1012.57.76 | 10 | 12 | 10x25+P.V. | 57 | 2+2 |
| 399.1013.57.75 | 399.1013.57.76 | 10 | 13 | 10x25+P.V. | 57 | 2+2 |
| 399.1015.57.75 | 399.1015.57.76 | 10 | 15 | 10x25+P.V. | 57 | 2+2 |
| 399.1020.57.75 | 399.1020.57.76 | 10 | 20 | 10x25+P.V. | 57 | 2+2 |
| 399.1213.57.75 | 399.1213.57.76 | 12 | 13 | 10x25+P.V. | 57 | 2+2 |
| 399.1215.57.75 | 399.1215.57.76 | 12 | 15 | 10x25+P.V. | 57 | 2+2 |
| 399.1220.57.75 | 399.1220.57.76 | 12 | 20 | 10x25+P.V. | 57 | 2+2 |
| 399.0812.70.75 | 399.0812.70.76 | 8 | 12 | 10x25+P.V. | 70 | 2+2 |
| 399.0813.70.75 | 399.0813.70.76 | 8 | 13 | 10x25+P.V. | 70 | 2+2 |
| 399.0815.70.75 | 399.0815.70.76 | 8 | 15 | 10x25+P.V. | 70 | 2+2 |
| 399.0820.70.75 | 399.0820.70.76 | 8 | 20 | 10x25+P.V. | 70 | 2+2 |
| 399.1012.70.75 | 399.1012.70.76 | 10 | 12 | 10x25+P.V. | 70 | 2+2 |
| 399.1013.70.75 | 399.1013.70.76 | 10 | 13 | 10x25+P.V. | 70 | 2+2 |
| 399.1015.70.75 | 399.1015.70.76 | 10 | 15 | 10x25+P.V. | 70 | 2+2 |
| 399.1020.70.75 | 399.1020.70.76 | 10 | 20 | 10x25+P.V. | 70 | 2+2 |
| 399.1213.70.75 | 399.1213.70.76 | 12 | 13 | 10x25+P.V. | 70 | 2+2 |
| 399.1215.70.75 | 399.1215.70.76 | 12 | 15 | 10x25+P.V. | 70 | 2+2 |
| 399.1220.70.75 | 399.1220.70.76 | 12 | 20 | 10x25+P.V. | 70 | 2+2 |
