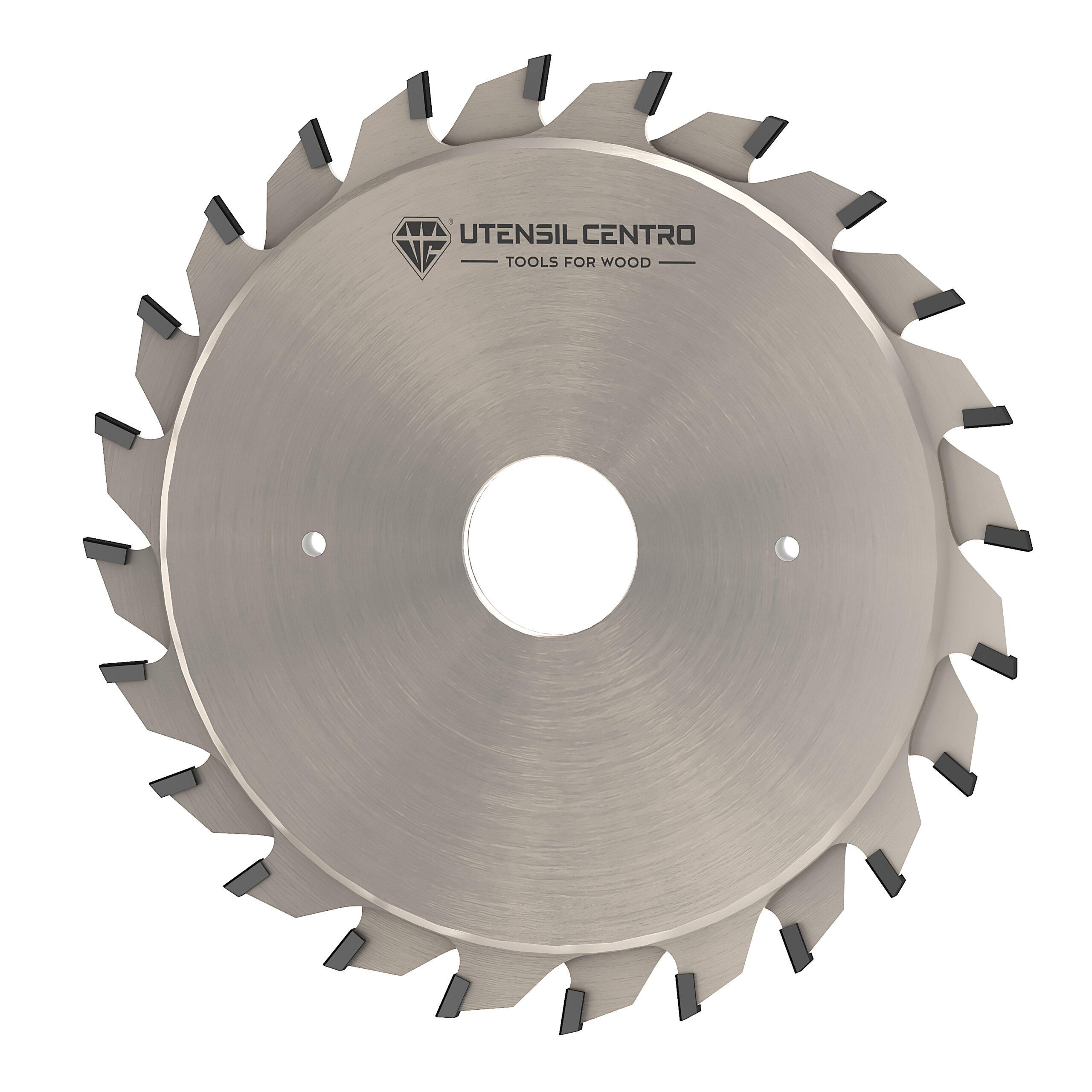

Adjustable diamond scoring saw blade
Description:
Scoring saw blade for coated, veneered and wood-based materials (such as chipboard, plywood and MDF). Finishing on the lower side of the panel.
Brazed polycrystalline diamond (PCD) tips. Flat sharpening. Cutting thickness can be adjusted using spacers or with a rapid system (on request), to match the kerf of the main saw blade. Machining operations in feed. Can be re-sharpened 10-12 times.
Technical summary table:
| Cod. | D | SP | F | Z |
|---|---|---|---|---|
| 823.08028362010+10X | 80 | 2,8/3,6 | 20 | 10+10 |
| 823.10028362012+12X | 100 | 2,8/3,6 | 20 | 12+12 |
| 823.12028362012+12X | 120 | 2,8/3,6 | 20 | 12+12 |
| 823.12028362212+12X | 120 | 2,8/3,6 | 22 | 12+12 |
| 823.12028365012+12X* | 120 | 2,8/3,6 | 50+4 | 12+12 |
| 823.12528362012+12X | 125 | 2,8/3,6 | 20 | 12+12 |
| 823.12528362212+12X | 125 | 2,8/3,6 | 22 | 12+12 |
