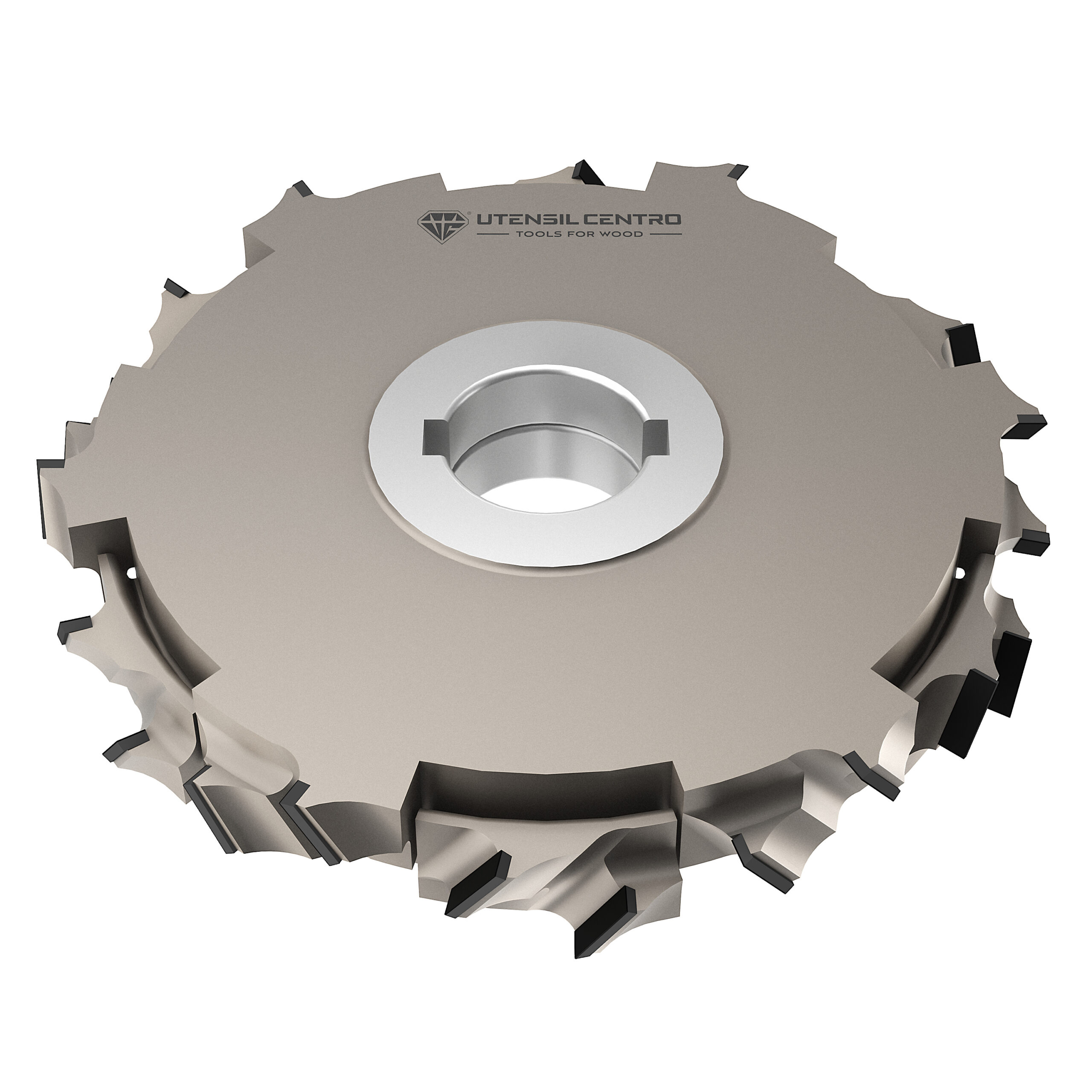

Adjustable diamond jointing cutterblock
Description:
Jointing cutterblock for coated, veneered and uncoated wood-based materials (such as chipboard, plywood and MDF), in and against feed.
Steel body and brazed polycrystalline diamond tips (PCD). With alternating 45° axial angle and efficient chip evacuation for excellent finishing quality on both sides of the panel. Cutting height adjustable by 0.1 mm at a time using the spacer rings supplied with the tool.
Technical summary table:
| Cod. F35 | Cod. F40 | D | SP | Z |
|---|---|---|---|---|
| 895.18022403512+12 | 895.18022404012+12 | 180 | 22/40 | 12+12 |
| 895.18022403510+10 | 895.18022404010+10 | 180 | 22/40 | 10+10 |
| 895.1802240358+8 | 895.1802240408+8 | 180 | 22/40 | 8+8 |
| 895.1802240356+6 | 895.1802240406+6 | 180 | 22/40 | 6+6 |
| 895.20022403512+12 | 895.20022404012+12 | 200 | 22/40 | 12+12 |
| 895.20022403510+10 | 895.20022404010+10 | 200 | 22/40 | 10+10 |
| 895.2002240358+8 | 895.2002240408+8 | 200 | 22/40 | 8+8 |
| 895.2002240356+6 | 895.2002240406+6 | 200 | 22/40 | 6+6 |
| 895.20024483512+12 | 895.20024484012+12 | 200 | 24/47,5 | 12+12 |
