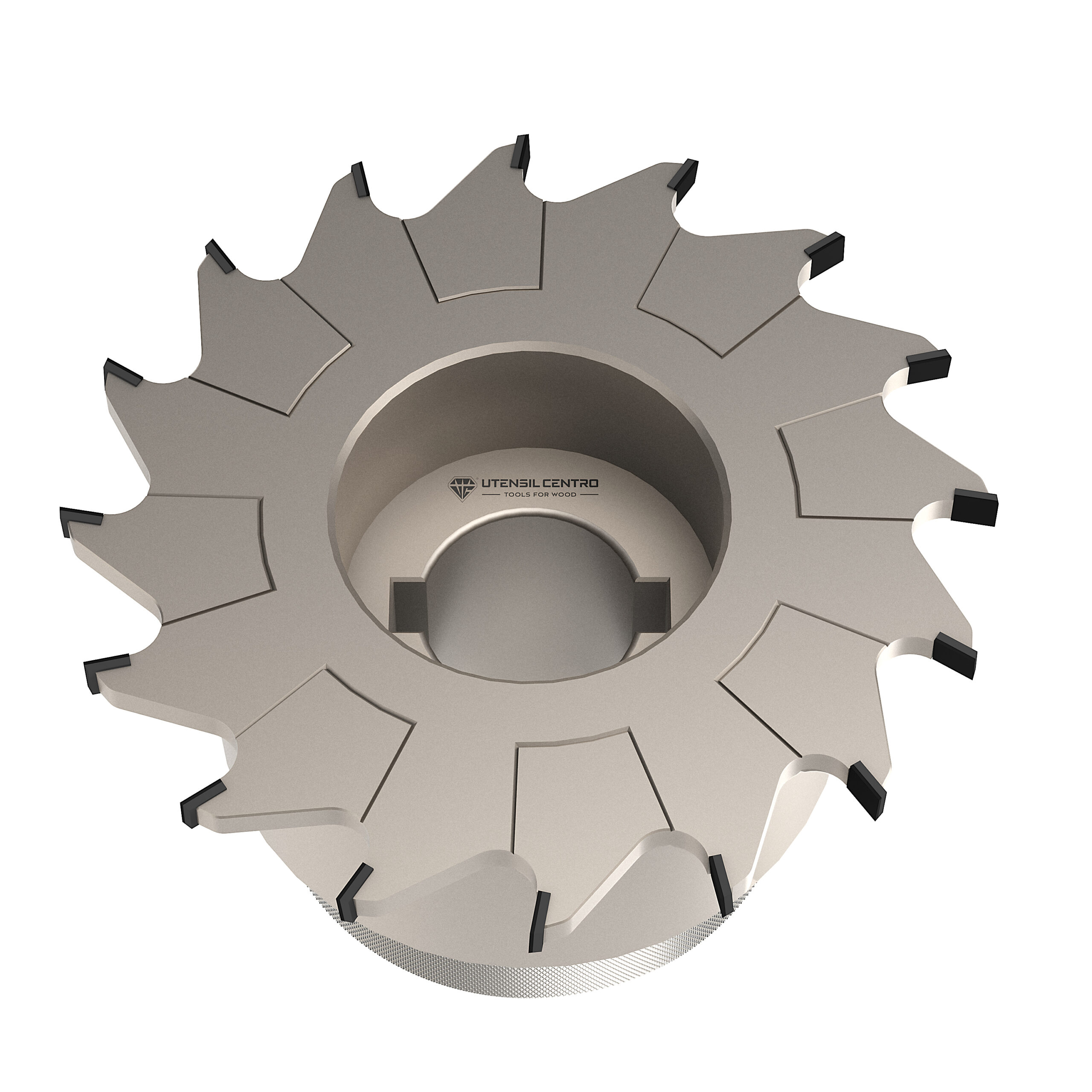

Adjustable diamond grooving cutter with ring nut
Description:
Cutter for grooving operations on coated, veneered and uncoated wood-based materials such as chipboard, plywood and MDF, composite materials (e.g. HPL, Trespa, etc.).
Raised steel body and brazed polycrystalline diamond tips (PCD). With alternating axial angle for improved finishing quality. Cutting thickness can be adjusted using the ring nut for this purpose.
Technical summary table:
| Cod. F30 | Cod. F35 | Cod. F40 | D | SP | Z |
|---|---|---|---|---|---|
| 862.16040304+4 | 862.16040354+4 | 862.16040404+4 | 160 | 4,0/7,5 | 4+4 |
| 862.16040306+6 | 862.16040356+6 | 862.16040406+6 | 160 | 4,0/7,5 | 6+6 |
| 862.16040308+8 | 862.16040358+8 | 862.16040408+8 | 160 | 4,0/7,5 | 8+8 |
| 862.160403010+10 | 862.160403510+10 | 862.160404010+10 | 160 | 4,0/7,5 | 10+10 |
| 862.160403012+12 | 862.160403512+12 | 862.160404012+12 | 160 | 4,0/7,5 | 12+12 |
| 862.20040304+4 | 860.20040354+4 | 862.20040404+4 | 200 | 4,0/7,5 | 4+4 |
| 862.20040306+6 | 862.20040356+6 | 862.20040406+6 | 200 | 4,0/7,5 | 6+6 |
| 862.20040308+8 | 862.20040358+8 | 862.20040408+8 | 200 | 4,0/7,5 | 8+8 |
| 862.200403010+10 | 862.200403510+10 | 862.200404010+10 | 200 | 4,0/7,5 | 10+10 |
| 862.200403012+12 | 862.200403512+12 | 862.200404012+12 | 200 | 4,0/7,5 | 12+12 |
