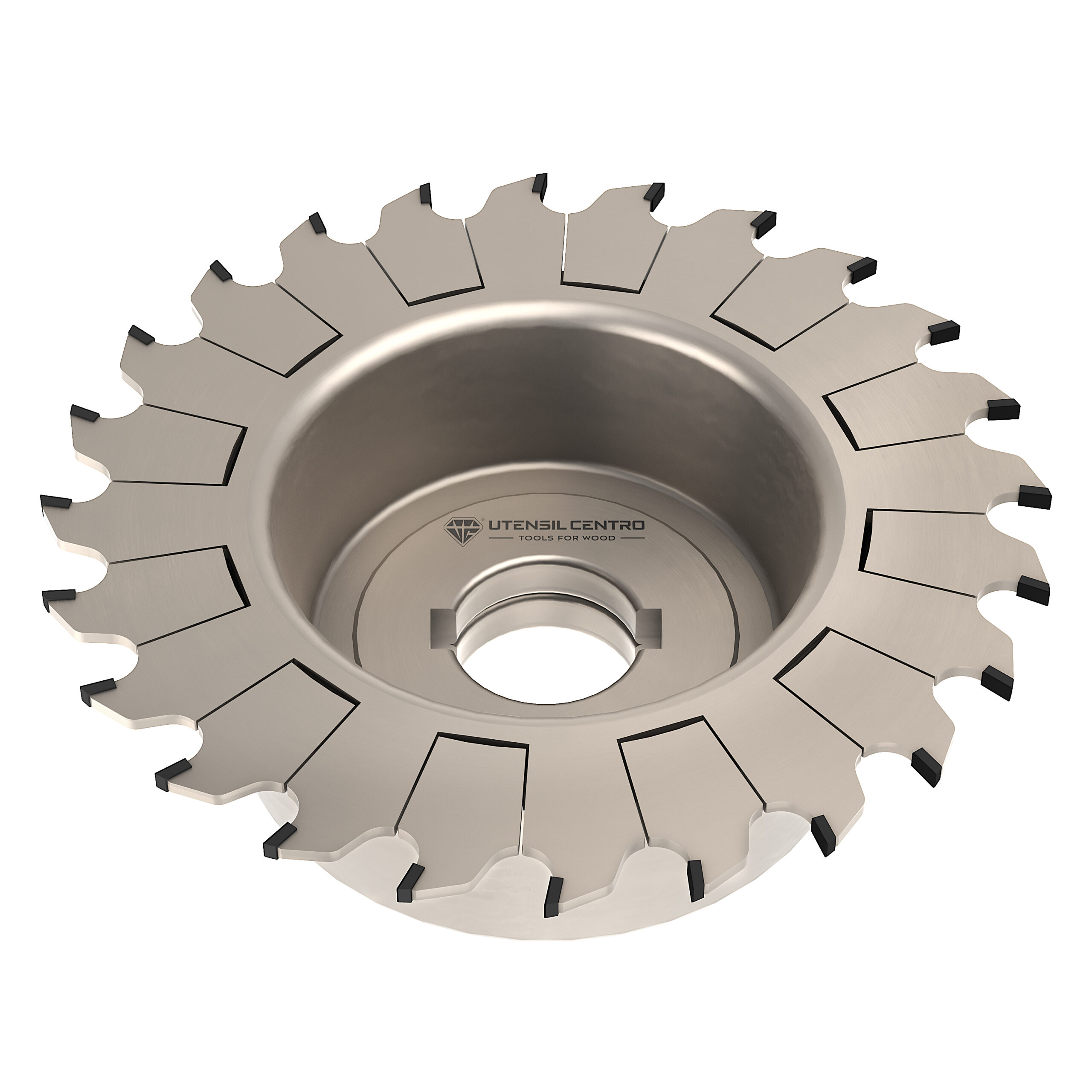

Adjustable diamond grooving cutter
Description:
Cutter for grooving operations on coated, veneered and uncoated wood-based materials such as chipboard, plywood and MDF, composite materials (e.g. HPL, Trespa, etc.).
Raised steel body and brazed polycrystalline diamond tips (PCD). With alternating shear angle for improved finishing quality. Cutting thickness adjustable by 0.1 mm at a time using the spacer rings supplied with the tool.
Technical summary table:
| Cod. F30 | Cod. F35 | Cod. F40 | D | SP | Z |
|---|---|---|---|---|---|
| 861.16040304+4 | 861.16040354+4 | 861.16040404+4 | 160 | 4,0/7,5 | 4+4 |
| 861.16040306+6 | 861.16040356+6 | 861.16040406+6 | 160 | 4,0/7,5 | 6+6 |
| 861.16040308+8 | 861.16040358+8 | 861.16040408+8 | 160 | 4,0/7,5 | 8+8 |
| 861.160403010+10 | 861.160403510+10 | 861.160404010+10 | 160 | 4,0/7,5 | 10+10 |
| 861.160403012+12 | 861.160403512+12 | 861.160404012+12 | 160 | 4,0/7,5 | 12+12 |
| 861.20040304+4 | 861.20040354+4 | 861.20040404+4 | 200 | 4,0/7,5 | 4+4 |
| 861.20040306+6 | 861.20040356+6 | 861.20040406+6 | 200 | 4,0/7,5 | 6+6 |
| 861.20040308+8 | 861.20040358+8 | 861.20040408+8 | 200 | 4,0/7,5 | 8+8 |
| 861.200403010+10 | 861.200403510+10 | 861.200404010+10 | 200 | 4,0/7,5 | 10+10 |
| 861.200403012+12 | 861.200403512+12 | 861.200404012+12 | 200 | 4,0/7,5 | 12+12 |
