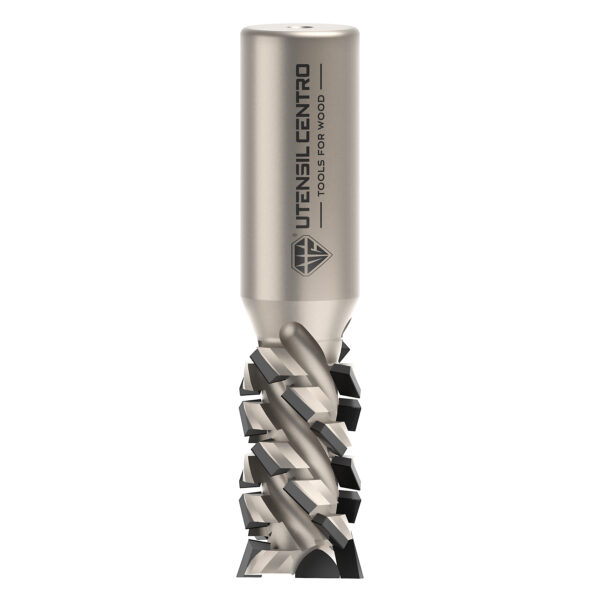

45° diamond router cutter for boring and milling
Description:
Router cutter for boring, grooving and trimming coated, veneered and wood-based materials (such as chipboard, plywood and MDF).
Steel body and brazed polycrystalline diamond tips (PCD). 45°alternating axial cutting edges arranged to ensure excellent finishing on both sides of the panel and good chip evacuation. Polycrystalline diamond (PCD) plunging tip for boring. Can be re-sharpened 8-10 times.
Technical summary table:
| Cod. RH | Cod. LH | D | I | S | LT | Z |
|---|---|---|---|---|---|---|
| 845B.2025.75 | 845B.2025.76 | 20 | 25 | 20 | 85 | 10+1DP |
| 845B.2030.75 | 845B.2030.76 | 20 | 30 | 20 | 90 | 12+1DP |
| 845B.2035.75 | 845B.2035.76 | 20 | 35 | 20 | 95 | 16+1DP |
| 845B.2040.75 | 845B.2040.76 | 20 | 40 | 20 | 100 | 18+1DP |
| 845B.2525.75 | 845B.2525.76 | 25 | 25 | 25 | 95 | 10+1DP |
| 845B.2530.75 | 845B.2530.76 | 25 | 30 | 25 | 100 | 12+1DP |
| 845B.2535.75 | 845B.2535.76 | 25 | 35 | 25 | 105 | 16+1DP |
| 845B.2540.75 | 845B.2540.76 | 25 | 40 | 25 | 110 | 18+1DP |
| 845B.2545.75 | 845B.2545.76 | 25 | 45 | 25 | 113 | 20+1DP |
| 845B.2550.75 | 845B.2550.76 | 25 | 50 | 25 | 117 | 24+1DP |
| 845B.2555.75 | 845B.2555.76 | 25 | 55 | 25 | 122 | 26+1DP |
| 845B.2560.75 | 845B.2560.76 | 25 | 60 | 25 | 127 | 28+1DP |
| 845B.2565.75 | 845B.2565.76 | 25 | 65 | 25 | 132 | 30+1DP |
