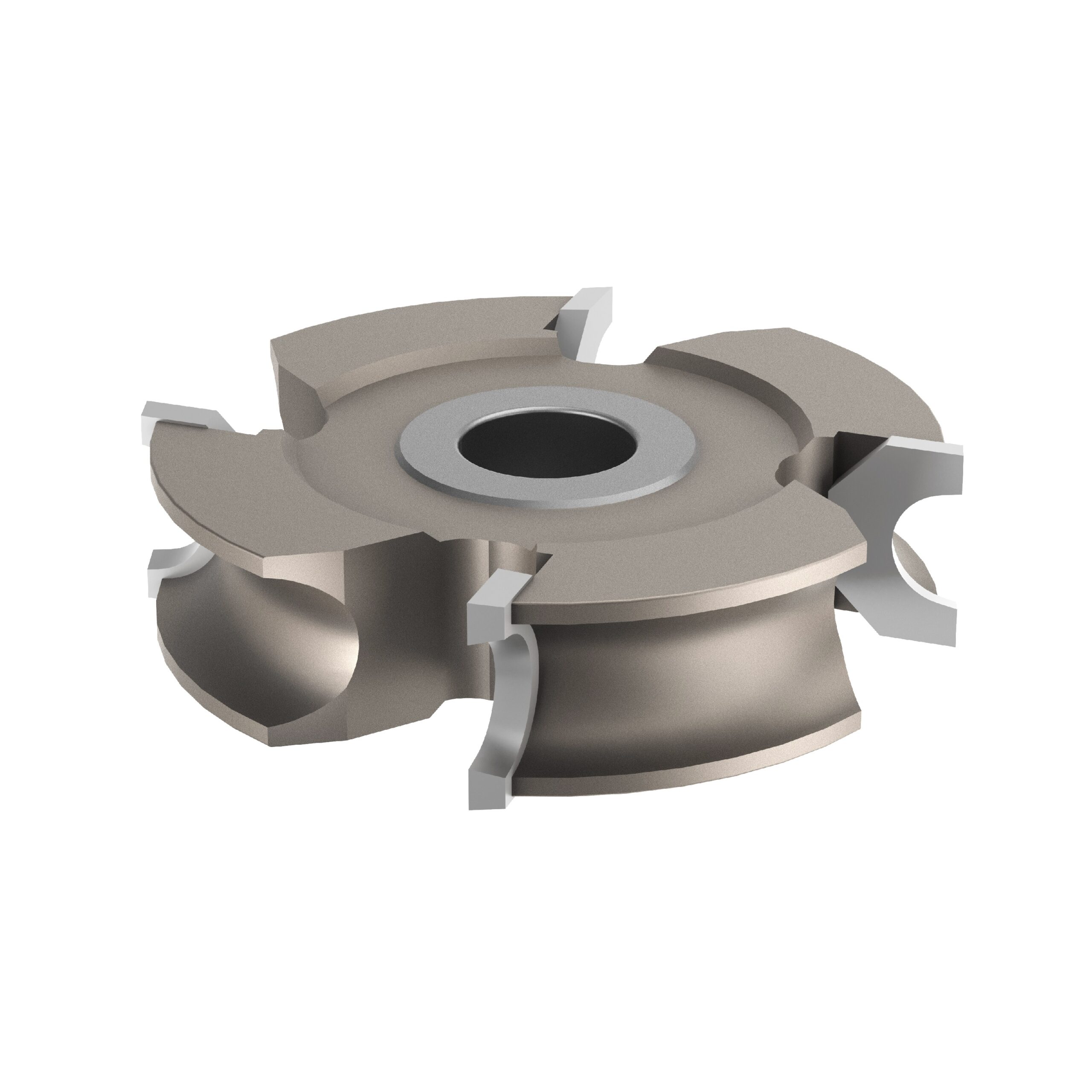

Fresa sagomata HW
Descrizione:
Fresa sagomata su disegno. Per legni teneri, duri, incollati, truciolari, MDF.
3 – 4 – 6 taglienti dritti o inclinati, secondo il tipo di profilo richiesto.
Tabella tecnica riassuntiva:
| Cod. F35 | Cod. F40 | D | B | Z |
|---|---|---|---|---|
| 400.100.010.35 | 400.100.010.40 | 100 | 10 | 4 |
| 400.100.015.35 | 400.100.015.40 | 100 | 15 | 4 |
| 400.100.020.35 | 400.100.020.40 | 100 | 20 | 4 |
| 400.100.025.35 | 400.100.025.40 | 100 | 25 | 4 |
| 400.100.030.35 | 400.100.030.40 | 100 | 30 | 4 |
| 400.100.035.35 | 400.100.035.40 | 100 | 35 | 4 |
| 400.100.040.35 | 400.100.040.40 | 100 | 40 | 4 |
| 400.100.045.35 | 400.100.045.40 | 100 | 45 | 4 |
| 400.100.050.35 | 400.100.050.40 | 100 | 50 | 4 |
| 400.100.060.35 | 400.100.060.40 | 100 | 60 | 4 |
| 400.100.070.35 | 400.100.070.40 | 100 | 70 | 4 |
| 400.100.080.35 | 400.100.080.40 | 100 | 80 | 4 |
| 400.100.090.35 | 400.100.090.40 | 100 | 90 | 4 |
| 400.100.100.35 | 400.100.100.40 | 100 | 100 | 4 |
| 400.120.010.35 | 400.120.010.40 | 120 | 10 | 4 |
| 400.120.015.35 | 400.120.015.40 | 120 | 15 | 4 |
| 400.120.020.35 | 400.120.020.40 | 120 | 20 | 4 |
| 400.120.025.35 | 400.120.025.40 | 120 | 25 | 4 |
| 400.120.030.35 | 400.120.030.40 | 120 | 30 | 4 |
| 400.120.035.35 | 400.120.035.40 | 120 | 35 | 4 |
| 400.120.040.35 | 400.120.040.40 | 120 | 40 | 4 |
| 400.120.045.35 | 400.120.045.40 | 120 | 45 | 4 |
| 400.120.050.35 | 400.120.050.40 | 120 | 50 | 4 |
| 400.120.060.35 | 400.120.060.40 | 120 | 60 | 4 |
| 400.120.070.35 | 400.120.070.40 | 120 | 70 | 4 |
| 400.120.080.35 | 400.120.080.40 | 120 | 80 | 4 |
| 400.120.090.35 | 400.120.090.40 | 120 | 90 | 4 |
| 400.120.100.35 | 400.120.100.40 | 120 | 100 | 4 |
| 400.140.010.35 | 400.140.010.40 | 140 | 10 | 4 |
| 400.140.015.35 | 400.140.015.40 | 140 | 15 | 4 |
| 400.140.020.35 | 400.140.020.40 | 140 | 20 | 4 |
| 400.140.025.35 | 400.140.025.40 | 140 | 25 | 4 |
| 400.140.030.35 | 400.140.030.40 | 140 | 30 | 4 |
| 400.140.035.35 | 400.140.035.40 | 140 | 35 | 4 |
| 400.140.040.35 | 400.140.040.40 | 140 | 40 | 4 |
| 400.140.045.35 | 400.140.045.40 | 140 | 45 | 4 |
| 400.140.050.35 | 400.140.050.40 | 140 | 50 | 4 |
| 400.140.060.35 | 400.140.060.40 | 140 | 60 | 4 |
| 400.140.070.35 | 400.140.070.40 | 140 | 70 | 4 |
| 400.140.080.35 | 400.140.080.40 | 140 | 80 | 4 |
| 400.140.090.35 | 400.140.090.40 | 140 | 90 | 4 |
| 400.140.100.35 | 400.140.100.40 | 140 | 100 | 4 |
| 400.160.010.35 | 400.160.010.40 | 160 | 10 | 4 |
| 400.160.015.35 | 400.160.015.40 | 160 | 15 | 4 |
| 400.160.020.35 | 400.160.020.40 | 160 | 20 | 4 |
| 400.160.025.35 | 400.160.025.40 | 160 | 25 | 4 |
| 400.160.030.35 | 400.160.030.40 | 160 | 30 | 4 |
| 400.160.035.35 | 400.160.035.40 | 160 | 35 | 4 |
| 400.160.040.35 | 400.160.040.40 | 160 | 40 | 4 |
| 400.160.045.35 | 400.160.045.40 | 160 | 45 | 4 |
| 400.160.050.35 | 400.160.050.40 | 160 | 50 | 4 |
| 400.160.060.35 | 400.160.060.40 | 160 | 60 | 4 |
| 400.160.070.35 | 400.160.070.40 | 160 | 70 | 4 |
| 400.160.080.35 | 400.160.080.40 | 160 | 80 | 4 |
| 400.160.090.35 | 400.160.090.40 | 160 | 90 | 4 |
| 400.160.100.35 | 400.160.100.40 | 160 | 100 | 4 |
| 400.180.010.35 | 400.180.010.40 | 180 | 10 | 4 |
| 400.180.015.35 | 400.180.015.40 | 180 | 15 | 4 |
| 400.180.020.35 | 400.180.020.40 | 180 | 20 | 4 |
| 400.180.025.35 | 400.180.025.40 | 180 | 25 | 4 |
| 400.180.03035 | 400.180.030.40 | 180 | 30 | 4 |
| 400.180.035.35 | 400.180.035.40 | 180 | 35 | 4 |
| 400.180.040.35 | 400.180.040.40 | 180 | 40 | 4 |
| 400.180.045.35 | 400.180.045.40 | 180 | 45 | 4 |
| 400.180.050.35 | 400.180.050.40 | 180 | 50 | 4 |
| 400.180.060.35 | 400.180.060.40 | 180 | 60 | 4 |
| 400.180.070.35 | 400.180.070.40 | 180 | 70 | 4 |
| 400.180.080.35 | 400.180.080.40 | 180 | 80 | 4 |
| 400.180.090.35 | 400.180.090.40 | 180 | 90 | 4 |
| 400.180.100.35 | 400.180.100.40 | 180 | 100 | 4 |
| 400.200.010.35 | 400.200.010.40 | 200 | 10 | 4 |
| 400.200.015.35 | 400.200.015.40 | 200 | 15 | 4 |
| 400.200.020.35 | 400.200.020.40 | 200 | 20 | 4 |
| 400.200.025.35 | 400.200.025.40 | 200 | 25 | 4 |
| 400.200.030.35 | 400.200.030.40 | 200 | 30 | 4 |
| 400.200.035.35 | 400.200.035.40 | 200 | 35 | 4 |
| 400.200.040.35 | 400.200.040.40 | 200 | 40 | 4 |
| 400.200.045.35 | 400.200.045.40 | 200 | 45 | 4 |
| 400.200.050.35 | 400.200.050.40 | 200 | 50 | 4 |
| 400.200.060.35 | 400.200.060.40 | 200 | 60 | 4 |
| 400.200.070.35 | 400.200.070.40 | 200 | 70 | 4 |
| 400.200.080.35 | 400.200.080.40 | 200 | 80 | 4 |
| 400.200.090.35 | 400.200.090.40 | 200 | 90 | 4 |
| 400.200.100.35 | 400.200.100.40 | 200 | 100 | 4 |
